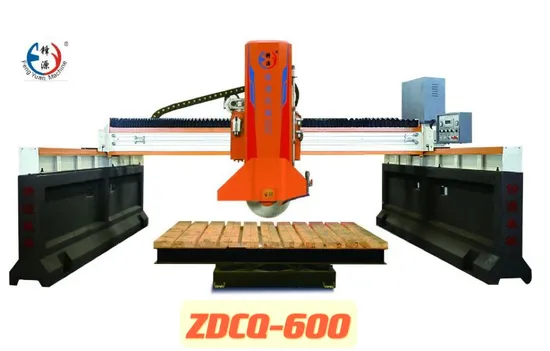

Granite Quartz Tiles Bridge Saw Stone Cutting Machine Marble Slabs Stone Cutter
| US$500.00-12,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZDCQ-600
Usage
Granite, Marble
Application
Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
Artificial
Crossbeam Length
4760mm
Crossbeam Height
350mm
Crossbeam Width
315mm
Sidebeam Length
4700mm
Lifting Stroke
350mm
Max.Diameter of Blade
450mm
Table Tilting Degree
0-85
Table Rotating Degree
90 or 360
Table Dimensions(Lxw)
3200X2000mm
Main Motor Power
15kw
Transport Package
by One 20feet Container
Trademark
FENGYUAN
Origin
China
HS Code
8464209000
Production Capacity
1000set/Year
Product Description
Product DescriptionThis infrared bridge cutting machine adopts infrared rays to align the knife to ensure accurate cutting, suitable for granite, marble, rock slab, tile, and other stone straight-cutting processing.
| Type | Unit | FY-ZDCQ-450 | FY-ZDCQ-600 | FY-ZDCQ-800 |
| Crossbeam Length | mm | 4760 | 4760 | 4760 |
| Crossbeam Height | mm | 350 | 350 | 350 |
| Crossbeam Width | mm | 315 | 315 | 315 |
| Sidebeam Length | mm | 4700 | 4700 | 4700 |
| Lifting Stroke | mm | 350 | 450 | 550 |
| Max.Diameter Of Blade | mm | ø450 | ø600 | ø800 |
| Flange Diameter | mm | 260 | 260 | 260 |
| Water Cover | mm | 640 | 840 | 1040 |
| Table Tilting Degree | n | 0-85 | 0-85 | 0-85 |
| Table Rotating Degree | n | 90/360 | 90/360 | 90/360 |
| Table Dimensions(LxW) | mm | 3200x2000 | 3200x2000 | 3200x2000 |
| Max.Working Dimensions(LxWxH) | mm | 3200x2000x65 | 3200x2000x160 | 3200x2000x260 |
| Main Motor Power | kw | 15 | 18.5 | 22 |
| Crossbeam Driving Motor | kw | 1.5 | 1.5 | 1.5 |
| Sidebeam Driving Motor | kw | 1.5 | 1.5 | 1.5 |
| Hydraulic Motor | kw | 2.2 | 2.2 | 2.2 |
| Water Consumption | m³/h | 4 | 4 | 4 |
| Cement Base | mm | 4700*1000 | 4700*1200 | 4700*1400 |
| Overalll Dimensions(LxWxH) | mm | 6000x5000x2800 | 6000x5000x2800 | 6000x5000x2800 |
Factory View
