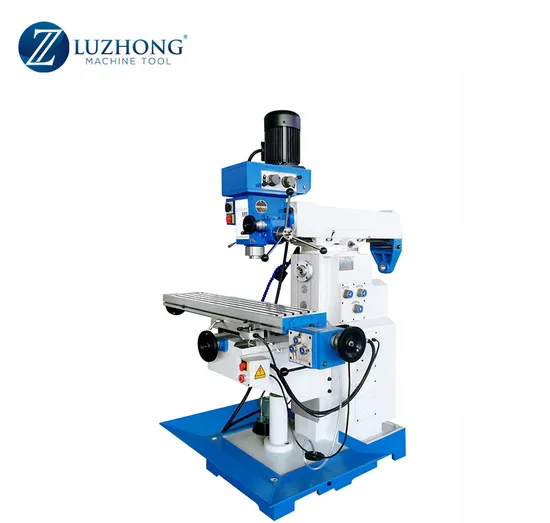

Worktable Universal Milling And Drilling Machine (ZX6350C)
Basic Info.
Model NO.
ZX6350C
Structure
Mill Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
50-100mm
Automatic Grade
Semiautomatic
Precision
Normal Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max. drilling dia.
50
Max. end milling dia.
100
Max. vertical milling dia.
25
Max. boring dia.
120
Max. tapping dia.
M16
Distance between spindle nose and table
80-460
Spindle travel
1200*280
Table size
680*280
Table travel
22-555
Main motor power
1.5
Transport Package
Plywood Case with Steel Base
Specification
1680*1400*2350
Trademark
luzhong
Origin
China
Production Capacity
50000 Pieces/Year
Packaging & Delivery
Package Size
1680.00cm * 1400.00cm * 2350.00cm
Package Gross Weight
1400.000kg
Product Description
Worktable Univereal Universal Milling And Drilling Machine (ZX6350C)Product Description
The main performance characteristics: 1.Gear transmission for vertical/horizontal milling head 2.X /Y/Z axis auto feed 3.Headstock swivel +/-45° 4.Guide way with sparking quenching Product Parameters
Product main technical parameters:
| Specifications | Units | ZX6350A |
| Table size | mm | 1250X320 |
| T Slot number/width/pitch | mm | 3/14/70 |
| Longitudinal travel | mm | 600 |
| Cross travel | mm | 300 |
| Vertical travel | mm | 300 |
| Beam travel | mm | 300 |
| Vertical spindle axis to column surface | mm | 200-500 |
| Vertical spindle nose to table surface | mm | 90-390 |
| Horizontal spindle axis to table surface | mm | 0-300 |
| Horizontal spindle axis to beam surface | mm | 175 |
| Vertical spindle speeds | R/min | 115-1750 8 steps |
| Horizontal milling spindle speeds | R/min | 40-1300 12 steps |
| Vertical spindle taper | MT4 | |
| Horizontal spindle taper | MT4 | |
| Vertical spindle travel | mm | 120 |
| Main motor power | kw | 0.85/1.5(V),2.2(H) |
| Vertical milling bead swivel angle | ° | ±45 |
| Table X/Y axis auto feed speed | Mm/min | 22-555(8 steps)(rapid:840) |
| Table Z axis auto feed speed | Mm/min | 560 |
| X/Y axis feed motor | w | 750 |
| Z axis feed motor | w | 750 |
| Overall dimensions | mm | 1680x1550x2100 |
| Net weight | Kg | 1450 |
Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
