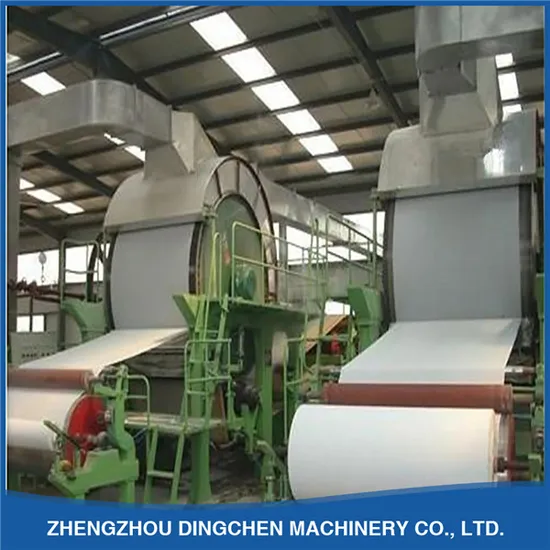

New Tissue Paper Making Machine 1880mm with High Quality

Product Description

New Tissue Paper Making Machine 1880mm with High Quality Perfect service: 1.technical consultation 2.Plant design 3.installation and test run 4.training engineers and workers 5.good and long time after-sale service The business process 1.send your requirements:raw material,capacity,paper grammage 2.we make the solution to you 3.come visit and negotiate 4.sign contract 5.first payment 6.production 7.pay spare money 8.delivery 9.installation ,training,test run 10.production consultlation
1880mm toilet paper production line for capacity 5t/d
I.Technical parameter

1. Raw material	recycled paper
2. Output paper	toilet paper
3. Output paper weight	17g/m2
4. Capacity	5 tons per day
5. Cylinder mold width	2300mm
6. Net paper width	1800mm
7. Working speed	70-150m/min
8. Designing speed	200m/min
9. Rail gauge	2800mm
10. Drive way	Alternating current frequency converter speed control, sectional drive.

II. The main structure with spec

1 . Cylinder mold part
1 set of φ1500mm×2300mm×2800mm stainless steel cylinder mold, 1 set of 450mm×2300mm×2800mm couch roll, coated by rubber, rubber shore hardness 38ºC±2.

Dryer part
1 set of 2500mm×2300mm×2800mm alloy dryer drum, 1 set of 500mm×2300mm× 2800mm touch roll, rubber shore hardness 90ºC±2. Pneumatic pressure device. There is double-layer dryer hood.

Winding part
1 set of 1000mm×2300mm×2800mm winding cylinder.

Rewinding and cutting part
1 set of 1880mm rewinding machine with embossing and perforating.
1 set of tissue paper cutting machine.

NO.	Equipment	Qty(set)
1	1880mm single cylinder single wire & single felt high speed tissue paper machine	1
2	Double-dryer exhaust hood	1
3	800axial-flow fan	1
4	Mould former	1
5	15 type roots pump	1
6	Suction box	2
7	5m3 High consistence hydrabrusher	1
8	380 double disc refiner	2
9	0.6pressure screen	1
10	606 desander 12pcs	4 group
11	Φ700thruster	4
12	8inch pulp pump	2
13	6inch pulp pump	6
14	6inch white water pump	2
15	Two-phase flow pump-150	4
16	workbench	1
17	Frequency control cabinet	1
18	Air pump cabinet	1

Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressurescreen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier papermachine, head box, cylinder mould, dryer cylinder, roller etc.)C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage1.Experienced producing team2.Advanced technological strengthProduct Advantage1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation
