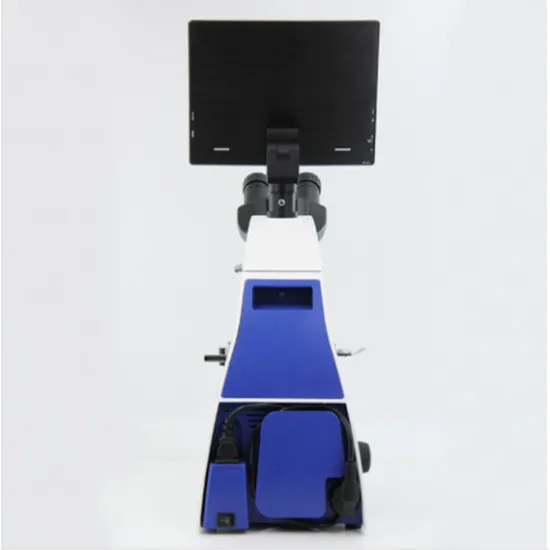

A33.1502 Microscope Resolution 9.7 LCD Digital Lab Microscope
| US$780.00-899.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
A33.1502
Magnification
40X-1000X
Type
Video
Number of Cylinder
Trinocular
Mobility
Portable
Stereoscopic Effect
Stereoscopic Effect
Kind of Light Source
3W LED Brightness Adjustable
Shape
Triangular Prism
Usage
Teaching, Research, Hospital
Principle
Optics
Principle of Optics
LCD Digital Lab Microscope
Package
53*32.5*53.5 Cm / 11.5kg, 1 Set / Carton
Data Storage
TF Card or Built-in Memory
Data Output
USB2.0, HDMI, TF Card
Video
1080P Video Record
Transport Package
Standard Export Carton
Specification
Pad 238*182*12mm, Camera 40*39mm
Trademark
Darppon
Origin
China
Production Capacity
10000 Sets / Year
Product Description
2022 New Arrival A33. 1502 LCD Touch Screen Digital Lab Microscope 9.7'' LCD / Android Pad / 5.0M Application: Hospital , School , Laboratory1,9.7" LCD Touch Screen Pad, With Android System + Measuring Software
2,High Eye-pointWide Field Eyepiece WF10x/20mm Dias.30mm
3,Achromatic HC 4x,10x,40x100x Objective, Upgrade-ableTo Infinity
4,Double Layer Mechanical Stage 143*132mm, Upgrade-ableTo 216x150mm
5,3W LED Kohl-er Illumination With Removable Light House For Easy Maintenance
Product Description
Large head tube 360° freely rota-table
4 Holes nose-piece switch objective smoothly
Abbe n condenser height adjustable, with iris diaphragm
Product Parameters
| Head | Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm, Both Eyepiece Tube Diopter Adjustable | |||
| Eyepiece | WF 10x / 20mm, Diopter Adjustable, Dias. 30mm | |||
| Objective | High Contrast Chromatic Free 4x, 10x, 40x(s), 100x(Oil, S) | |||
| Focus Knob | Coaxial Coarse & Fine Focusing, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Focusing Range 24mm | |||
| Nosepiece | Quadruple, Backward With Click Stops | |||
| Stage | Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75x50mm | |||
| Condenser | Abbe Condenser N.A.1.25, Center Adjustable | |||
| Light Source | 3W LED Brightness Adjustable | |||
| Adapter | C-Mount 1.0x | |||
| Package | 53*32.5*53.5cm / 11.5Kg, 1 Set/Carton | |||
| Camera | 5.0M 1/2.5" CMOS Digital Camera | |||
| Resolution | 2048 x 1536 @ 15FPS | |||
| Pixel | 2.2 um x 2.2 um | |||
| Data Storage | TF Card or Built-in Memory | |||
| Data Output | USB 2.0, HDMI, TF Card | |||
| Photo | 5.0M .JPEG | |||
| Video | 1080p Video Record | |||
| System | Android 5.1 System 90 Languages Support Mouse + Keyboard Control Support WIFI Support Bluetooth | |||
| Power | DC 12V/2A Power Adaptor, AC 100~240V | |||
| Size | Pad 238x182x12mm, Camera 40x39mm | |||
