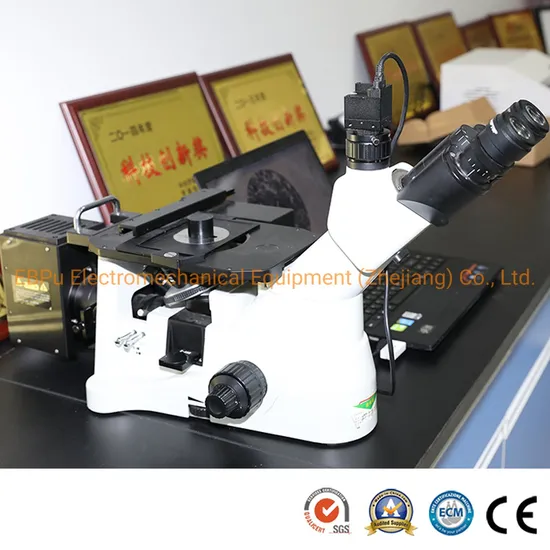

Inverted Trinocular Metallographic Microscope E-800 for Metallurgical Labs

Product Description

Product Description Inverted Trinocular Metallographic Microscope E-800 For Metallurgical Labs
Introduction: 1. Provide superior image and reliable mechanical structure 2. Easy operating, various of accessories, widely used in teaching and research metallographic analysis and facility materials testing. 3. Optical system: Infinity color corrected optical system (CSIS), better image, higher resolution, more comfortable observation; 4. Eyepiece and Objective: 4.1 High eyepoint widely plan eyepiece PL10x/22mm provid e more widely and plan observation space and can be installed various of micro meter. 4.2 Professional infinity plan achromatic LWD metallurgical objective, no cover glass design. 5. Viewing head: Gemel trinocular head diopter adjustable 45°inclined, can photo graph and image pickup, can collect and preserve the image, also can analysis the image with computer and specialized software. 6. Focus: Low hand position coaxial coarse and fine focusing mechanism, with coarse tension adjustment device, Coarse adjustment range 38mm, precision of fine adjustment 0.002mm (2um). 7. Illuminator system: Reflection Koehler illuminator with iris diaphragm and center able filed diaphragm, wide voltage 90-240V , 12V/50W imported halogen bulb, effectively protect and extend the life of halogen bulb. 8. Stage: can be setting coaxial low hand position removable stage and the stage extension plate, expand the application space, to meet the different needs of customers.

Product Parameters Technical Parameter:

Optical system	Infinity color corrected optical system
Viewing head	Gemel trinocular head 45° inclined, Interpupillary distance adjustable between: 54-75mm,diopter adjustment ±5, refract rate: binocular 100%,binocular: trinocular = 80% : 20%
Eyepiece	High eyepoint wide field plan eyepiece PL10X / 22mm
Objective	Infinity LWD plan achromatic metallurgical objective: LMPL5X /0.15 / WD10.8 LMPL10X/0.3 / WD10 LMPL20X/0.45 / WD4 LMPL50X/0.55 / WD7.8
Nosepiece	Reversed quintuple (five hole) nosepiece
focus	coaxial coarse and fine focusing mechanism,coarse range: 38mm per rotation, fine range: 0.2 mm per rotation,fine precision: 0.002mm,with coarse tension adjustment device
stage	Fixed stage, Size 160 X 250mm
plate	Metal plate(center hole Ø12)/Metal plate(center hole Ø25)/ the stage extension plate
Movable	coaxial low hand position removable stage,moving range 120 x 78mm
Reflective illumination System	Reflection Koehler illuminator,with iris diaphragm and centerable filed diaphragm, wide voltage 90-240V,12V/50W halogen bulb,center adjustable light intensity continuously adjustable
Polarizing kit	Polarizer slide
	Analyzer slide, 360° rotating
Filter	Ø32mm yellow/green/blue/neutral
