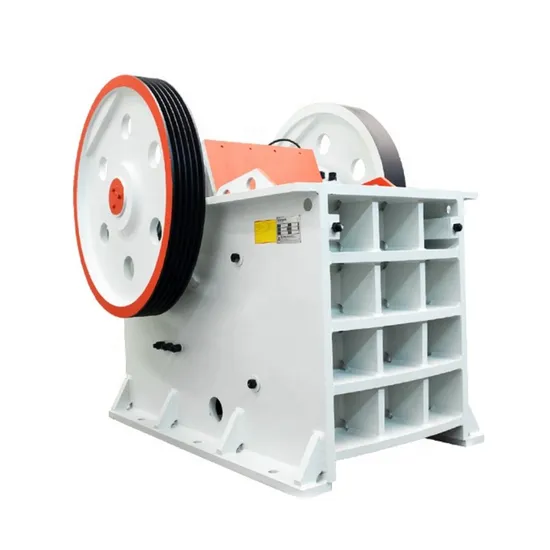

400*600 Electric Jaw Crusher Machine
| US$4,500.00-4,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
2
Type
Jaw Crusher
Application
Machinery & Hardware, Construction, Mineral Industry, Stone Industry
Drive
Electric
Crushing Style
Extruding
Compressive Strength (For Crushing)
250-300MPA
Crushing Degree
Intermediate Crusher
Finished Surface
Cut Off Tool
Certification
CE
Condition
New
Color
White
Feeding Port Size
150X250mm
Max Feed Size
125mm
Discharge Opening Adjustment Range
10-40mm
Capacity
1-3t/H
Eccentric Shaft Speed
250r/Min
Motor Power
5.5kw
Total Weight
0.8t
Transport Package
Wooden Box
Specification
720x660x850mm
Trademark
QT
Origin
China
HS Code
8474100000
Production Capacity
0.8t
Product Description
1.Product IntroductionJaw crusher is a crusher which is composed of two jaw plates, static jaw and moving jaw, to simulate the movement of animals to complete the material crushing operation.
2.Apply Field
It is widely used in the crushing of various ores and large materials in mining smelting, building materials, highway, railway, water conservancy and chemical industries.
It is applied to fine crushing of various material of which compressive strength is less than or equal to 320Mpa, is applied to relatively small feeding material granularity and relatively small discharging gate, and is fitted for the secondary crushing.
| Model | PE150x250 | PE200x300 | PE200x350 | PE250x400 | PE400x600 |
| Feeding Port Size | 150x250mm | 200x300mm | 200x350mm | 250x400mm | 400x600mm |
| Max Feed Size | 125mm | 180mm | 180mm | 210mm | 340mm |
| Discharge Opening Adjustment Range | 10-40mm | 15-50mm | 18-70mm | 20-60mm | 40-100mm |
| Capacity | 1-3t | 2-6t | 3-10t | 5-20t | 16-60t |
| Eccentric Shaft Speed | 250r/min | 260r/min | 260r/min | 300r/min | 275r/min |
| Power | 5.5kw | 7.5kw | 11kw | 15kw | 30kw |
weight | 0.8 | 1.2t | 1.5t | 2.8t | 7t |
