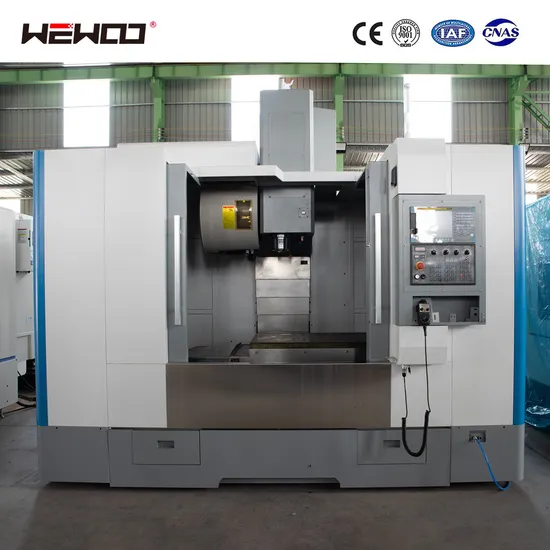

Easy to Use CNC Milling Machine Vmc1275 High Efficiency Universal Machine Center

Product Description

Easy to Use Cnc Milling Machine Vmc1275 High efficiency universal Machine center
Product Description

Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the DEESEN MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance.
Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the DEESEN MACHINE.
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc. Product Parameters
Product main technical specifications:

Specification	Units	VMC1270	VMC1275
Table size	mm	1300*700	1300*750
X axis travel	mm	1300	1300
Y axis travel	mm	700	750
Z axis travel	mm	700	700
Max. table load	kg	1200	1000
T slot(number-width*pitch)	-	5-18*130	5-18*122
Max. spindle speed	rpm	8000	6000
Spindle taper	mm	BT50	BT40
Main motor power	kw	15/18.5	11/15
X/Y/Z rapid traverse speed	m/min	24/24/18	24/24/18
Cutting feed speed	mm/min	1-6000	1-6000
Guide rail type	-	Linear rail	Linear rail
Distance from spindle axis to column surface	mm	780	750
Distance between spindle nose and table surface	mm	100-800	87-687
Positioning accuracy	mm	±0.0075	±0.0075
Repeat positioning accuracy	mm	±0.005	±0.005
Tool magazine	-	Arm 24	Arm 24
Max. tool diameter	mm	Φ112 (Adjacent)/ Φ200(Apart)	Φ78 (Adjacent)/ Φ120(Apart)
Max. tool weight	kg	18	18
Machine weight	kg	10000	8000
Overall dimension	mm	3400*2900*3000	3400*2900*3000

Detailed Photos
TAIWAN PRECISION SPINDLE
1. Spindle taper is BT50;
2. Spindle speed 8000rpm , can enlarge to 10000rpm
3. Taiwan Spindle passed dynamic balance ISO rating test
TAIWAN TOOL MAGAZINE
1. Standard with Taiwan 24 Arm tool magazine, tool change time only 3 seconds.
2. Brand: OKADA
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class
2. Brand: HIWIN or PMI
CONTROL SYSTEM
Standard: GSK / KND control
Optional : Siemens , FANUC, Syntec ect.
AIR STORAGE TANK
Air storage tank to ensure the stability of spindle tool change

PNEUMATIC COMPONENTS
Provides precise control and repeatability to ensure high efficiency and stability of the process. It has the advantages of fast response speed, high control accuracy and low maintenance cost, so it has been widely used in machining centers
ELECTRICAL COMPONENTS
1. with safety electrical components
2. quick plug as standard
3.Precision processing, high efficiency and stability
LEAD SCREW AND COUPLING
Taiwan precision lead screw.
1.Lead screw bearing use S K F or NACHI bearing,
2. Coupling R+W directly connected .
Company Profile
Since its establishment, Deesen Machine Tool (Shandong) Co., Ltd. has more than 20 years of experience as a professional lathe manufacturer. Has been deeply cultivated in the machine tool industry, has gradually developed into a highly influential enterprise.
In the field of research and development, we have invested a lot of resources and set up a professional research and development team with top talents. The team members include mechanical engineering experts, automation technology elites, etc., they keep up with the industry's cutting-edge technology trends and constantly explore innovation. With the in-depth study of the core technology of the machine tool, the company has independently developed a number of key technologies, which makes our machine tools reach the micron level in cutting accuracy, greatly improving the degree of refinement of parts processing.
In terms of production, the company adopts advanced production management system, has a modern production workshop and high-precision processing equipment. Whether it is casting, stamping, or machining, we strictly follow the principle of fine production to ensure that every component meets high quality standards. Moreover, we have established a strict quality inspection process, from raw material procurement to finished product assembly, each process is checked at various levels, using a variety of internationally accepted quality inspection methods, to ensure that the product pass rate of more than 99%.
The company has a complete range of products, from conventional ordinary machine tools to high-end CNC machine tools. Among them, our CNC machine tools have the advantages of high automation, high precision and high stability, and are widely used in high-end manufacturing fields such as automobile manufacturing, aerospace and precision mold processing.
In addition to excellent products, we have also built a perfect after-sales service network. The after-sales center arranges professional technical service personnel to provide 7×24 hours rapid response service. Whether it is equipment installation, commissioning, maintenance, or operator training, we can provide customers with a full range of quality services.
Over the years, with leading technology, excellent product quality and perfect service system, Deesen Machine Tool (Shandong) Co., Ltd. has not only occupied an important market share in China, but also exported to many countries and regions, winning wide praise from customers at home and abroad. In the future, we will continue to take innovation, quality and service as the cornerstone, constantly improve the competitiveness of enterprises, and lead the machine tool industry to a new height.
FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )
