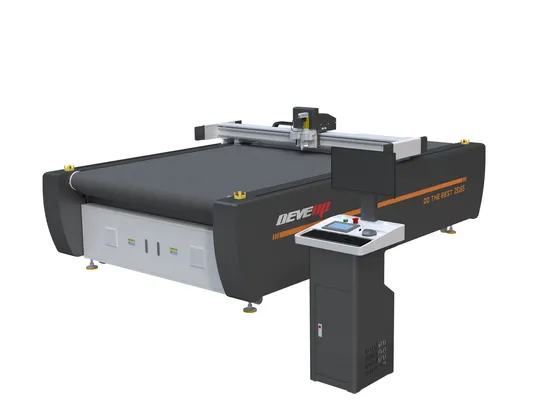

Automatic Vibrating Knife Cutter CNC Digital Cutting Machine for Synthetic Leather Carbon Fiber Prepreg Neoprene Fabric Garment Shoe Upper Sofa

Product Description

Fully Automatic digital knife cnc cutting machine for Carbon fibre prepreg fiberglass Neoprene fabric glass fiber curtain garment cloth leather spongeProducts Description:
Deveup automatic oscillating knife cutting machine perfectly resolves the cutting and proofing work of small batches and multiple styles for leather and fabrics. It can cut 1-10 layers leather. Deveup cnc leather cutting machines eliminate the need for expensive dies and reduce the need for manpower, all while processing leather, sole, lining, and pattern materials efficiently and at the highest levels of quality. Superior cutting performance, low operating costs, and optimized workflow guarantee a quick return on investment.
Processing Advantages
Our oscillating knife cutting machine can cut shoe upper material, natural leather, synthetic leather, saddle leather, shoe leather, fabric, prepreg, neoprene, sole material, face leather, leather bag, leather gloves, leather shoes, car interior, sole cutting, seat cover, printed leather, PU leather, mesh, wool slippers, sponge shoes, golf bags, casual shoes and Various composite materials. It can complete the special-shaped processing of work-pieces with high precision and more stability, avoid knife die, no yellowing and coking, no cutting deformation, no smoke, odor, safety, environmental protection and convenient maintenance.
1. No need for molds, just convert the paper pattern graphics into electronic data through the digital system, and use the intelligent nesting system for fast nesting, and the work of cutting and proofing can be completed quickly.
2. Compared with laser cutting leather, the oscillating knife cutting machine not only cuts faster (the cutting speed is 2-3 times that of laser), but the cutting edge is smooth, without carbonization, and without any peculiar smell.
3. The modular tool design can be equipped with a variety of cutting tools, punching systems with different diameters, and marking systems to meet the various leather processing techniques and reduce the dependence of leather cutting on workers.Product Paramenters:

Model	DO1625F / DO1830F / 2030F ( Support customization )
Working area	1600 x 2500mm / 1800 x 3000mm 2000x3000mm
Maximum cutting speed	1700mm/s(according to different cutting materials)
Precision	±0.01mm
Cutting thickness	45mm ( Support customization )
Material management	Automatic feeding
Fixed material method	Vacuum + zone adsorption
Various tool combinations	Electric Cutter+Round cutter+Marking pen
	Pneumatic cutter + Round cutter + Punching tool
	Round knife/oscillation knife + punching + marking
	Oscillating Knife + Round Knife + Punching tool
Cutting materials	Synthetic leather, Pure leather, Cowhide, Neoprene, Nonwoven, Prepreg, fabric,PVC,glass fiber,silicon,rubber,carbon fiber,cardboard,KT board, PE,carpet,gasket,ABS and so on
Transmission system	Drive mode of Japanese servo motor + precision reducer; rack drive; Taiwan HIWIN guide rail
Voltage	220V/380V ±10%, 50Hz/60Hz
Supported file formats	PLT, DXF, DWG, AI, etc.

Machine Details: Colorful LCD touch operation panel supports world multilingual kinds of languages, with more intuitive operation interface, which can directly input processing data, set processing speed and knife depth, support screen automatic protection, and protect processing data,feature-rich and user-friendly operation. A variety of tool combinations, equipped with intelligent prop interchange system, can cut different materials to achieve different tasks, and multiple tool heads can work individually or in concert. Powerful function, fast running speed, high processing accuracy, truly multi-purpose machine. We use CNC gantry machining center for planing and milling machine bed. Our machine bed has the characteristics of heavy weight, good load-bearing capacity and high hardness, which ensures the accuracy and stability of the oscillating knife cutting machine at high speed. We guarantee that the machine will not be deformed in 10 years. The beam adopts the extrusion process of aviation aluminum alloy die, which ensures the stability and high precision of machine operation at high speed, especially suitable for some industries that require high precision, such as sealing gasketsImported famous brand helical gear rack, quenching and hardening treatment. High precision, strong load-bearing capacity, smooth running at high speed and less noise.Taiwan PMI 20mm high precision linear guide, high positioning accuracy, high repeatability. Low friction resistance, high rigidity four-way load design, high speed and long time operation to maintain high precisionSafety protection device. Highly sensitive collision avoidance system and red light brake system. When the machine is cutting at high speed, it can effectively protect safety of the operator. Imported Holland 4mm Felt
To protect the vacuum table and blades when machine working. Cut resistance, good softness, will not scratch the product, non-slip
It has an automatic feeding conveyor for rolls cutting. After cutting the material on the table. The feeding table automatically rolls forward to pull the material behind the table. and keep cutting. No need to manually pull the material forward. The cutting process also does not need to be interrupted, and with automatic deflection function. Increased efficiency and reduced manual work.The worktable is a high precision and strength aluminum honeycomb vacuum absorption worktable. Cooperate with high power vacuum pump to fix the material, to ensure it won't move in the cutting process. Vacuum adsorption starts and stops automatically according to the cutting process. The adsorption process does not require manual operation.Use top quality Japan Panasonic or Taiwan Delta servo motors and drivers. Strong power, long life, and high precision.Machine operation software is feature-rich, supports multi-language, friendly operation, and has automatic optimization nesting function, which can help customers save raw materials to the greatest extent.
More Applications:
Advantages compared with laser cutter and manual:
Optional Cutting Tools:
Package And Delivery:
FAQ:
1. Q: Are you a factory or Trading company?
A: We are a professional oscillating knife cutting machine production factory, we produce high-end quality CNC cutting machines.
2. Q: Can you customize the machine according to my needs?
A: Yes, we accept the customized machine, our company has an experienced professional design team, we can give you our professional suggestions according to your requirements and design a cost-effective machine for your needs.
3. Q: What is the difference between this knife cutting product and your laser cutting machine?
A: a. This knife cutting machine cut with vibrating blades, no laser, no pollution, and create a good working environment for workers.
b. Blade cutting can ensure the edge of material cutting smooth without burning.
4. Q: What's the warranty policy?
A:Standard warranty is 36 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period.
Problems caused by wrong operate will also well-solved.
5. Q: Can I still get support after warranty?
A: Of course, We offers life-time technology support, you can always counting on our service.
6. Q: This is the first time I buy machine from China, what can you do for me?
A: We supply DDU service for the new buyers. This service means we will deliver machine directly to your factory.
Why Choose Us?
We provide customers with automated production equipment that replaces skilled workers and reduces labor costs.
We equip our machines with automated typesetting software that provides customers with an optimal layout plan, maximizes material utilization and avoids wasted material.
Our equipment is easy to operate. The digitalized processing transforms "old-fashioned" repetitive work (typesetting, changing size, etc.) into one operation, making it more "user-friendly," reducing employee turnover and its negative effects on production.Digital production enables a seamless cooperation between machine and man that has never before been possible.
The efficiency of our machines is unparalleled and the supply cycle is shortened, which makes our customers become the leaders once again in a highly competitive industry.
