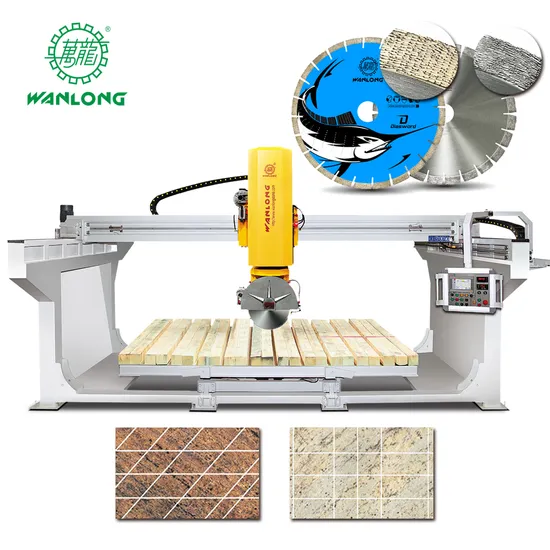

4 Axis Edge Cutting Machine Marble Stone Cutting

Product Description

High efficiency for cutting slab & tile, stable and reliable
Feature
1. Wide bridge structure with crossbeam, large size of slab cutting available
2. Equipped with infrared device, precise cutting location reachable
3. Dustproof design of the slide track ensures the precise guide movement & long lifespan
4. Worktable can tilt & rotate in wide angle for special processing
5. PLC control system, programmable, fully automatic & smooth feeding
6. Precise movement of head in X, Y, Z directions by rack & gear
7. Electric parts of Japanese name brand adopted, reliability guaranteed
8. Touch-sensitive operating system, friendly human-machine interface design
9. CE certificate
The crossbeam is made of strong cast iron to avoid distortion after long run
Guide rail is oil impregnated and protected from water and dust
Vertical movement of machine head is driven by hydraulic system, and the stroke is adjustable
Horizontal movement of the crossbeam is driven by motor equipped with OMRON rotary encoder by which the precision is guaranteed
Worktable can tilt 0-85° , and rotate 0-360° .
Equipped with Panasonic frequency transducer and OMRON PLC, programmable and fully automatic
Lead Time: 30 days after receipt the down payment.
