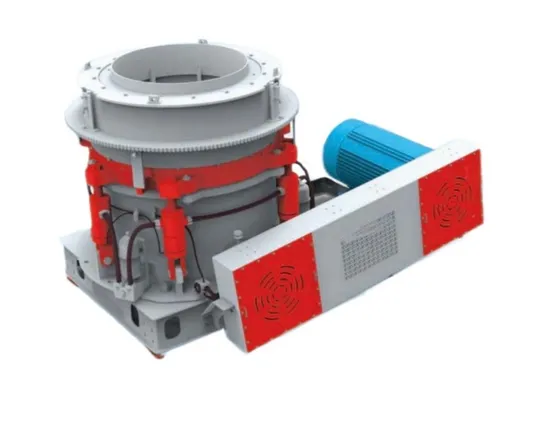

Hydraulic Cone Crusher for Construction, Mining Crusher

Product Description

Product Description
HP (High Performance) series cone crusher perfectly combines crushing speed, eccentricity (stroke) and cavity design, which can provide higher output and better product quality. It has a wider range of applicability:
· From limestone to iron lint
· From highway gravel to mechanism artificial sand
· From tight-type mobile crushing stations to large fixed crushing plants
· HP series cone crushers show unparalleled performance in medium crushing, fine crushing or ultra-fine crushing operations. They provide higher production volume, better product grain shape, higher finished product rate of specific specifications, convenient automatic control, and maximum reliability and flexibility.
Product characteristics
By optimizing the crushing speed and large stroke, the new generation of crushers can provide the largest crushing ratio among today's cone crushers. Because of its ultra-efficient crushing effect, the power utilization rate of the HP series cone unit moving cone diameter can reach the highest, so as to achieve the lowest power consumption per ton of crushed finished products and the lowest cycle load double savings. The higher material density in the crushing chamber enhances the lamination crushing effect, achieving a more constant product particle size distribution and better particle shape (cube).
The HP series cone crusher inherits the practical tested cone thread rotation adjustment design. The comparative test shows that the wear of the crushing chamber is more uniform and the discharge port along the entire circumference is more constant. In addition, the latest designed iron release system has a fixed discharge port return point. After the miscellaneous iron passes through the crushing cavity, it can quickly restore the original discharge port.
· Wide range of applications and strong adaptability.
· Due to the characteristics of high strength, large speed adjustment range, and convenient conversion between different crushing chambers, the new crusher has unprecedented application flexibility.
· The large crushing ratio and the short crushing process are conducive to saving material storage space.
· To convert from coarse cavity type to ultra-fine cavity type, you only need to replace the lining plate and change the speed.
· By replacing the lining plate and adjusting the speed, it can adapt to the transformation from medium crushing to artificial sand-making or ultra-fine grinding applications.
Technical Parameter

Model	Cavity shape	Open-sided feed opening(mm)	Closed-side feed opening(mm)	Minimum discharge(mm)	Motor power(KW)	The weight of the main unit(kg)
HP300	A	237	200	25	220	14200
	B	219	183	20
	C	193	156	15
HP400	A	275	237	28	315	21400
	B	240	203	25
	C	201	158	20
HP500	A	330	270	30	400	33150
	B	300	230	25
	C	230	175	20
HP600	A	375	328	30	450	34000
	B	327	279	25
	C	254	196	20
HP800	A	410	350	32	600	68650
	B	350	300	32
	C	300	220	25

Model	Closed-sided discharge opening	16mm	19mm	22mm	25mm	32mm	38mm	45mm
HP300	t/h	164-220	182-241	199-262	210-279	217-307	251-349	279-388
HP400		235-315	260-345	285-375	300-400	310-440	360-500	400-555
HP500		265-335	315-385	330-410	350-435	385-510	420-580	485-670
HP600		335-450	370-490	410-535	430-570	440-630	515-715	570-790
HP800		370-485	440-530	450-580	475-700	515-770	580-920	670-1000
