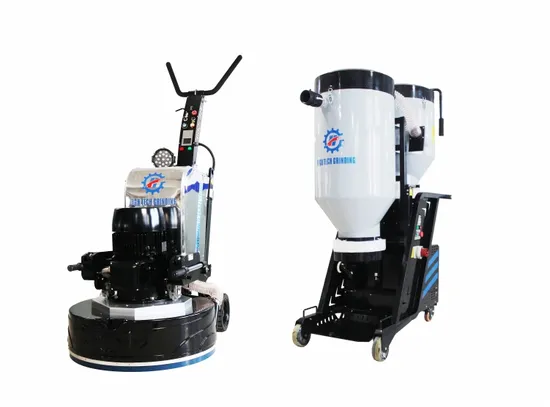

High Effective 800mm Self-Propelled Concrete Grinder

Product Description

High Quality Planetary Concrete Floor Grinder Machine for Floor Grinding
HTG-800-4A floor grinder have achieved unique balance between devices power, design and tooling speed, working efficiency. With patented four-disc planetary technology makes it standing out from other machines.
Technical Specifications

Model	Self-propelled Floor Grinder Machine HTG 800-4A
Inverter	18.5KW/A18.525HP
Power	15KW/20HP
Voltage	220-240/53A three phase
Rotating Speed	450-1950rpm
Weight	540kg/1190lbs
Operating Width	800mm(256*4)

Machine Shows
Self-walking,workers don't need to push or pull the machine.
There is a motor on the leg which can actuate the machine to walk forward and backward.
Dual-speed setting function,even grinding
Walking speed 0-25m/min, motor speed 450-1950rpm.
Each grit, at different time, different labor, the speed will be the same and achieve even grinding, no human subjective influence.
Generation 5 gearbox design,strong grinding force
The scientific gearbox design allows me able to walk at whatever rough surface. The 24 pieces heads run in plantary rotating direction increase my grinding force. Any hard or uneven floor, no more headache.
Slope grinding ability
Rose to the challenge is it's character.As long as the slope is within 25 degree,It can easily climb or down.No need 2 or 3 big man to drag it.
Advantages
1.According to the ground, the machine can use different kind of diamond tools.
2.The machine can be used for dry and wet grinding.
3.There is a dust port for you to connect industrial vacuum cleaner.
4.Patent planetary rotating system.
5.Precise and durable gear-driven.
6.Long battery life (Charge 7 hours can walk 25 hours)
Concrete Floor Grinder Machine Customer Demo
Manufacturing Center
Xingyi Polishing Machine Co.,Ltd is proud to be one of integrators that providing full-floor polishing products and service in China.We have Global Series and High Tech Grinding Series Polishing Machines which varies from one head to four heads can be able to meet different construction requirements. The gear-driven machines are user-friendly and productive, and they are able to grind efficiently and give out a a fine polish on the surface. And our machines can work in planetary or rotatory direction. Moreover, We do provide various horsepower options such as 20HP, 15HP, 10HP, 7.5HP and more.We also offer our The High Tech Grinding Tools including metal pads and resin pads with fantastic value and a good price. As for chemicals, we have our High Tech Grinding Chemicals for repairing, hardening, sealing and stone crystallization. If you have any problems,please don't be hesitate to contact us,thank you!
Jane Ling - international sales Dept
Facebook: Floor Grinder
Website:xingyigroup.en.made-in-china.com

Our Certificates
Packing & Delivery
Packing Dteails:Each floor grinding machine packed in strandard wooden case.
Delivery Time:Shipped in 7 days after payment.
FAQ
Q: Are u the manufacturer ?
A: Yes of course, we are the manufacturer ! we welcome clients to visit our factory to inspect our
produce process at any time.Our factory is located in Jinjiang, China ( Xiamen airport, Xingyi pick up )
Q: How long your product's warranty ?
A: One year warranty .
Q: What is your MOQ ?
A: 1 set
Q: What is your packaging ?
A: We package in Plywood case.
Q: What is your payment method ?
A: 100%^Or 50% T/T advance, the balance should be pay off before shipment.
Q: Do your machine can be custom-made ?
A: Yes, we can design and produce according to client's requirements.
Q: What is your delivery time ?
A: 7~20 days ( according to the total quantity)
