BMS Auto-Changed C75-300 Purlin/Chanel Cold Roll Forming Machine/Roller Former Machine with PLC System Factory Price

Product Description

BMS Auto-Changed C75-300 Purlin/Chanel Cold Roll Forming Machine/Roller Former Machine with PLC System Factory Price Product Description

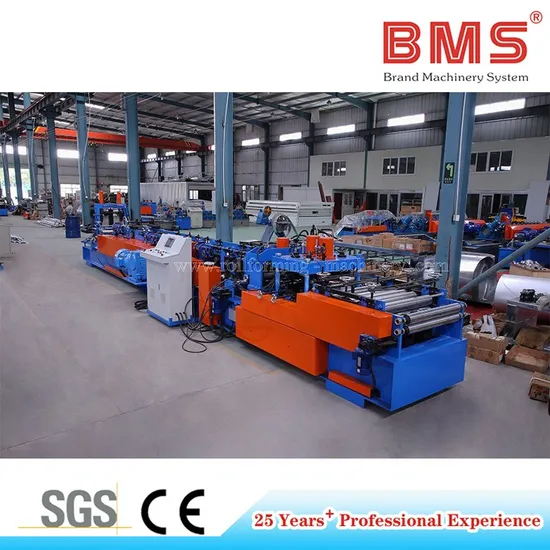

Automatic Change Type C Purlin Roll Forming Machine For C75~300 Profile



Material
Lip(A):10~25±1mm
Effective width tolerance:±0.5mm
Height(B):C30~80±0.5mm
The length of tolerance:±2(6m)
Web(H/C):C75~300±0.5mm
Material Thickness:1.0-3.0mm
Applicable material:Galvanized Sheet(GI)
Yield Strength:234-345Mpa
Cold Roll Steel(CRC),Hot Roll Steel(HRC) Feeding and Leveling Device
Hydraulic Pre-Cutting&Punching Device
Pre-punching and pre-cutting, use the same hydraulic system
Hydraulic motor:7.5KW,
Punching and Cutting tool material:mold steel Cr12MoV,Heat treatment
1-cylinder hole punching system for punching both on web and flange
Main Machine
Body frame made from H450 type steel by welding
Side wall thickness: Q235 t30mm
Rollers manufactured from GCr15/Cr12 steel,CNC lathes,Heat Treatment
Shafts Diameter=ф90,precision machined
Gear/Sprocket driving,about 21-step to form
Main Motor=18.5KW , Frequency speed control
Speed redcucer motor:K series
Size changing motor:6pcs(Auto change the width ,height and lip),Automatically controlled by PLC Programing
Post Hydraulic Cutting Device
Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor:7.5KW,with Hydrualic Pre-Punching Device Share a hydraulic station ;
Cutting tool material: Cr12MoV,Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine hydraulic station
PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand)/Schneider(French brand)
Inverter	Siemens (German brand)/Schneider(French brand)
7-Inch Color Touch Screen	Siemens (German brand)/Schneider(French brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens(German brand)/Schneider(French brand)
Air Switch	LG-LS(Korea brand) Cut-to-Length Tolerance≤±1 mm Control Voltage 24V

After-Sale Service
1. The warranty is 24 months after the client receives the machine.
Within The 24months, we will courier the replacement parts to the client free of charge
2.We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with extra cost
Terms Of Trade

Minimum order quantity (MOQ)	1 Set
Delivery time	about 45 workdays
Port of loading	port of Xiamen
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea, Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia, Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion), loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
