5bbl 1000L 10bbl 1500L 2000L Complete Craft Beer Equipment for Microbreweries Nano Breweries Brewpub Restaurants 3 Vessel Brewing Kit Fermentation Tanks

Product Description

ModularityOur concept of modularity allows the brewery to have a brewhouse that is always adequate for the real production need.

BREWHOUSE	Mash Tun	Lauter Tun	Boil Kettle	Whirlpool Tank	Hot Liquor Tank
2-vessel	multifunctional tank		multifunctional tank		√
	multifunctional			tank	√
3-vessel	multifunctional tank		√	√	√
	√	√	multifunctional tank		√
	multifunctional	√	tank	√	√
4-vessel	√	√	√	√	√

MULTIFUNCTIONAL TANK for the realization of two or more processes in one vessel

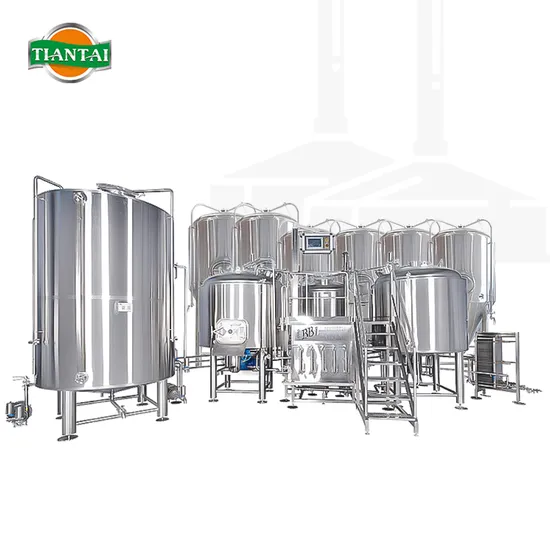

Tiantai 3-vessel Brewhouse

3-vessel systems are available with several options to help deliver brewing efficiency, control & automation, and overall flexibility. Should you need it, the 3-vessel is also capable of five or six brews for a day, depending on configuration.
Tiantai brewhouses are manufactured for every type of brew and we can offer a fully automated PLC system, a semi-automated brewhouse system or a completely manual brewhouse, depending on specific requirements. Our breweries range from as small as 1HL to 50HL and larger.
Full stainless-steel construction of all wetted parts, platforms, legs, staircases, hand railings, flues, fixtures, and fittings.

Heating Option
We have a range of kettle heating options including electric, direct fire, or steam, depending on the site and local utility costs and the scope of your project.
*Electric - Available on 200L to 3000L.
*Direct Fire - Available on 500L, 800L, 1000L and 1500L.
*Steam - Available on 500L to 15000L.
Sanitary
*All systems and vessels are CIP designed for ease of cleaning.
*Check valve and air filter for wort aeration system to prevent wort seepage into CO2 tube.
*All stainless-steel piping is purged welded.
*Suggested cleaning chemicals and procedures provided prior to system start-up.
Brewhouse Details
Fermentation System
Recommend Products
Solution Example

Modular	Configuration	Quantity
1. Malt Milling System	Mill Machine	1 unit
	Grist case	optional
	Flexible conveyor	optional
2. Brewhouse System	Mash tun	1 set
	Lauter tun
	Kettle tun
	Whirlpool tun
	Hot water tank	optional
	Cold water tank	optional
	Plate and frame heat exchanger	1 unit
	Accessories	1 set
3. Fermentation System	Fermentation tank	6 units
	Accessories	1 set
4. Cooling System	Glycol water tank	1 unit
	Chiller	2 units
	Accessories	1 set
5. CIP System	Acid tank	1 unit
	Caustic tank	1 unit
	Sanitizer tank	1 unit
	Accessories of the CIP System	1 set
6. Control System	Automatic/Semi-auto/Manual: PID/PLC control	1 set
7. Filtering System	Bright beer tank	optional
	Candle-type diatomite filter/Membrane filter/Bag filter	optional
8. Filling System	Glass bottle line	optional
	Canning line	optional
	Keg system	optional
