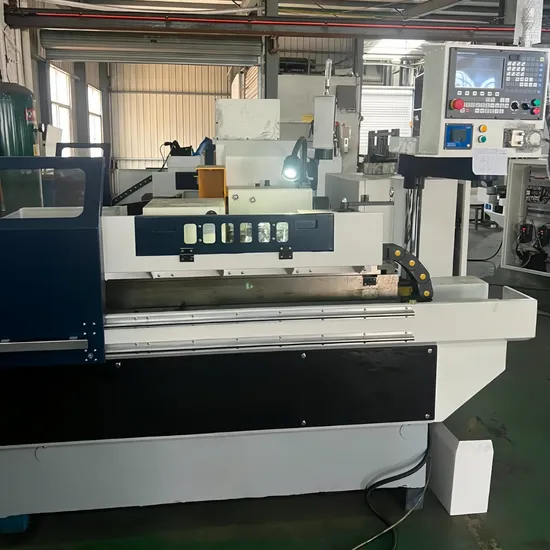

CNC High Speed Cylindrical Grinder Machine with Length 1000mm

Product Description

Product Description
Work diagram
CNC cylindrical grinding machine CG3210 features

1.This machine tool is a CNC external grinding machine, suitable for batch and small to medium batch production workshops. It mainly processes cylindrical or multi step cylindrical parts and has a high cost performance ratio.
2. The electrical control system of the machine tool is equipped with a CNC system, and the execution system uses a CNC servo driver servo motor. The longitudinal movement of the machine tool workbench and the lateral feed motion of the grinding wheel holder are both driven by servo motors through ball screws, resulting in high feed accuracy; Configure the operation panel, with a user-friendly human-machine interface and convenient operation. Other systems can also be used according to user needs, and online automatic measuring instruments can be configured.
3. The operation of the machine tool is simple and practical, and it can be easily operated with simple training. The operator can automatically process workpieces of different sizes by setting the parameters of longitudinal and tangential grinding through the CNC operation panel. This machine tool is equipped with a workbench that automatically jumps gears and can grind multiple steps of a work. The multiple steps can be arranged in any longitudinal or cutting grinding sequence to grind industrial parameters.
4. Equipped with automatic grinding wheel trimming function and automatic compensation function. The spindle bearing of the grinding wheel rack adopts four tile dynamic pressure bearings, and high-precision dynamic and static pressure spindles can also be selected according to user requirements. The moving parts of the machine tool are automatically lubricated, and the tailstock is operated by both hydraulic and manual methods. The workpiece, oil pump, and cooling pump are respectively driven by separate motors. According to customer needs, the headstock can be equipped with a variable frequency motor to achieve stepless speed change.
Product Parameters

Main parameters of grinding machine
Items	CG3210	CG3215	CG3220	Unit
Max. grinding length	1000	1500	2000	mm
Grinding diameter	Φ8-320	Φ8-320	Φ8-320	mm
Max. workpiece weight	150	150	150	kg
Center height	180	180	180	mm
Center distance	1000	1000	1000	mm
Grinding wheel head angle	±10	±10	±10	°
Worktable angle	±3	±3	±3	°
Grinding wheel size	Φ305*Φ50*75	Φ305*Φ50*75	Φ305*Φ50*75	mm
Linear speed of grinding wheel	35	35	35	m/s
Total power	12	12	12	kw
Top taper	Morse taper 5#	Morse taper 5#	Morse taper 5#	---
Min. feed rate of worktable	0.002	0.002	0.002	mm
Worktable feed rate	0.0005-5	0.0005-5	0.0005-5	m/min
Min. feed rate of grinding wheel holder	0.002	0.002	0.002	mm
grinding wheel holder feed rate	0.0005-9	0.0005-9	0.0005-9	m/min
Hydraulic system working pressure	0.8-1	0.8-1	0.8-1	mpa
Cooling system flow rate	25	25	25	L/min
Machine size	3700*1770*2000	4200*1770*2000	5000*2500*2800	mm
Machine tool working accuracy (standard test piece)
Roundness	0.002mm
Consistency of longitudinal section diameter	0.01mm
Roughness	Ra0.32um
