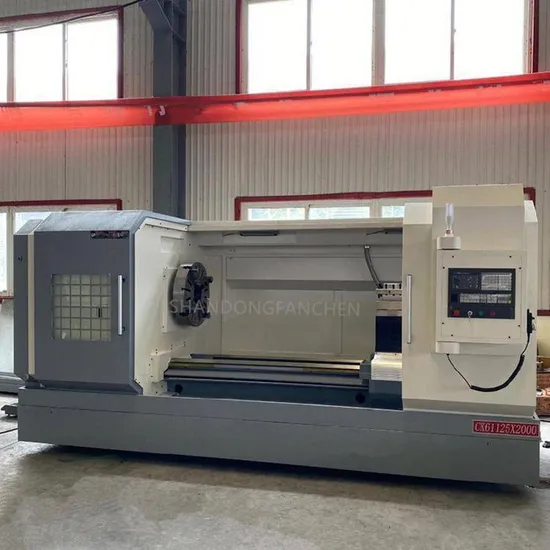

Ck61125 CNC Lathe Horizontal Heavy-Duty Lathe Machining System Optional
| US$17,300.00-26,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK61125
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Turning Diameter of Bed Surface
1250
Maximum Working Length
1000-5000
Tool Rest Form
Electric Four-Station
Machining Accuracy
High
Inner Diameter of Spindle Through Hole
Φ105
Diameter of Rotation on The Plate
900
Spindle Drive Form
Three Speed Endless Shift
Principal Axis Series
Four Speed Endless Transmission
Servo Motor
10/15
Maximum Turning Diameter on The Tool Hol
480mm
Transport Package
Wooden
Specification
2600× 1500× 1650
Trademark
FANCHEN
Origin
China
Production Capacity
10
Packaging & Delivery
Package Size
3600.00cm * 3800.00cm * 3100.00cm
Package Gross Weight
2200.000kg
Product Description
| Maximum turning diameter on the bed | 1250mm |
| Maximum turning diameter on the tool holder | 820mm |
| Width of guide | 600m |
| Spindle end | A2-11 |
| Spindle through hole diameter | 105 mm |
| Spindle speed | 30-835 |
| Principal axis | Manual shift to fourth gear |
| Drag board z to the minimum moving unit | 0.001mm/min |
| Drag plate X to the minimum moving unit | 0.001mm/min |
| Drag plate X to the minimum moving unit | 1250mm |
| Drag board z stroke | 1500mm/2000/3000 |
| Maximum working length | 1350/1850/2850mm |
| Drag board x/z to fast moving speed | 6000/4000mm/min |
| Tailstock sleeve taper hole | Six Mohs |
| Tail seat sleeve diameter | 130mm |
| Maximum travel of tailstock sleeve | 250mm |
| Main motor power | 15KW15KW motor |
| Z-axis repeated positioning accuracy | 0.015mm |
| X axis repeated positioning accuracy | 0.01mm |
| Electric tool holder repeated positioning accuracy | 0.002mm |
| Machine weight | 6T/7T/8T |
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) FAQ
