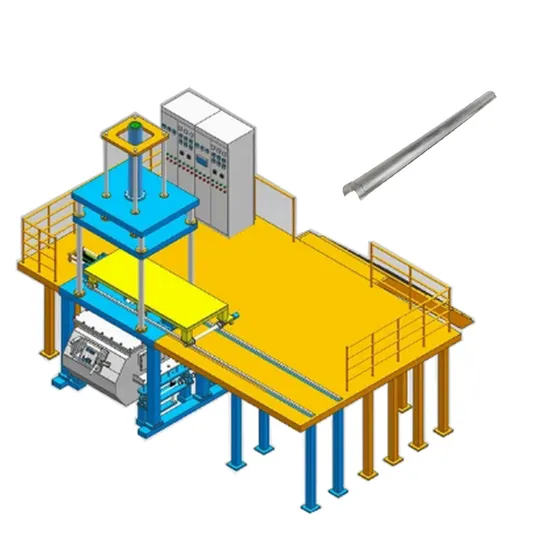

Aluminum Alloy Auto Parts Die Cast Equipment Automatic Injection High Efficiency and Energy Saving Automatic Low Pressure Die Casting Machine

Product Description

Aluminum Auto Parts Die Cast Machine Low Pressure Die Casting Machines Product Description
Usage:
★Non-stick aluminum structure to reduce oxidation burn
★Full digital servo hydraulic system, or variable frequency hydraulic system, saving energy by more than 50%
★90°installation mold (reverse installation)
★Ultra-high pressure accuracy
★High productivity
★Fully automatic cycle
★Full hydraulic power drive
★Reverse top stripping
★High rigidity, high strength and high reliability
★Energy saving and eco-friendly
Features of Product:
1. Siemens PLC+HMI semi-automatic operation, high efficiency and save labor
2. Supply solution and turnkey project service
3. Finish installation and adjustment before delivery to produce qualified product
4. Great aftersales, free parts and service
Technical Parameters:

Installation method of holding furnace	Fixed	Mobile
Holding furnace capacity	500kg	500kg
Table size	1400*1400mm	1500*1500mm
Moving template size	800*800mm	800*800mm
Distance between moving template and workbench	450-1450mm	450-1450mm
Moving template stroke	1000mm	1000mm
Inner dimensions of workbench column	1050*980mm	1050*1150mm
Ejection stroke	50mm	50mm
Mold cooling	10 cooling lines	10 cooling lines

Application Industry of Machine:
Equipment Technology Specification:

LPDC Machine Technology Specification
Parameter	Unit	J452L	J455L	J458L
Machine body
Fixed columns clearance	mm	1050*750	1400*1000	1750*1250
Distance between mobile and fixed platen	mm	450-900	500-1350	550-1800
Side cylinder stroke	mm	250	300	450
Opening force of the upper cylinder	KN	122	177	245
Closing force of the upper cylinder	KN	94	138	305
Opening force of side cylinder	KN	59	94	165
Closing force of side cylinder	KN	78	122	212
Ejection force	KN	122	177	305
Holding furnace
Furnace type		crucible	crucible or refractory
Capacity	KG	300	500	800
Power rate	KW	20	30	40
Temperature control accuracy	±ºC	2	2-5
Furnace pressure	Bar	Max. 1.5 bar
Hydraulic pump station system
Motor type (Regulation or Servo)		optional
Motor power rate	KW	5.5	15	18.5
Hydraulic pressure	Bar	Min. 80 bar -max. 120 bar
Pump type (gear or plunger)		Optional
Cooling type		Air	Air or water	Water
Cooling water consumption	L/Min		40	50
Operation control system
PLC, HMI unit		Siemens
Operation method		Automatic
Main power voltage (380V 60HZ,400V 50HZ)	V, HZ	Optional
Auxiliary power voltage	V, HZ	24
Control cabinet cooling type		Fan	Fan or air conditioning

Related equipment you can supply:
Company Profile:
Nanjing Boqiao Machinery Co.,Ltd is a professional Low pressure and gravity casting machine manufacturer.Since 2004,Boqiao focuses on the design and manufacture of aluminum die casting machine and auxiliary equipment,including aluminum alloy low pressure casting machine, gravity casting machine, tilting melting furnace, quenching furnace and aging furnace, aluminum liquid degasser and other supporting equipment.
Over the years, Boqiao Machinery has always adhered to the concept of scientific and technological development,with the purpose of creating an international first-class aluminum alloy casting equipment production enterprise, continuously increasing investment and research and development of new materials and technologies.At the same time, Boqiao Machinery has carried out close exchanges and cooperation with domestic casting research institutes and universities for a long time, and extensively return visit to our new and old customers, constantly drive endless momentums to the company's development.
Since 2015, Boqiao low pressure casting machines have been exported to all of the world such as India,Brazil,Middle east,Russia,Egypt,Turkey and other countries.
Integrity management,win-win cooperation,Boqiao! looks forward to your coming.
