PC-Based Hydrostatic Surface Grinders Machine

Product Description

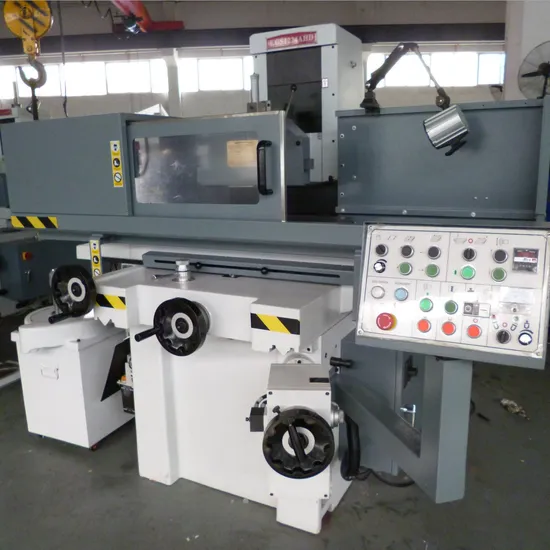

1. Picture
AHS: 3-axis automatic feed
hydraulic automatic longitudinal feed
electronic automatic cross feed
drive motor auto down feed
2. Parameters

Parameter		Unit	KGS1224AHS
Working Surface of Table		mm	300×600 (12"×24")
Max.Table Travel		mm	660
Max.Cross Travel		mm	340
Distance Between Table Surface and Spindle Center		mm	520
Max.Table Load		kgs	420
T-Solt (Number×Width)		mm	1×14
Table Speed		m/min	5~25
Cross feed Handwheel	1gard	mm	0.02
	1 rev		5
Automatic Cross feed of Saddle		mm	0.5~12
Power Cross Feed	50HZ	mm/min	790
	60HZ		950
Grinding Wheel Dimensions		mm	355×40×127
Spindle Speed	50HZ	rpm	1450
	60HZ		1740
Vertical Handwheel	1gard	mm	0.005
	1 rev		2
Automatic Down Feed Rate		mm	0.005/0.01/0.015/0.02 /0.025/0.03/0.04/0.05
Auto Lifting		mm	REST,ORIGIN 0.05-0.5
Power Head Increment		mm/min	380
Spindle Motor		kw	4
Vertical Servo Motor		NM	6
Hydraulic Motor		kw	1.5
Dust Collection Motor		w	550
Coolant Motor		w	90
Crossfeed Motor		w	90
Floor Space		mm	2600×2500
Packing Dimensions		mm	2200×2000×2195
Net Weight		kgs	1900
Gross Weight		kgs	2200

3. Main Configuration of Grinding Machine
1. Spindle motor: ABB brand.
2. Spindle bearing: NSK brand P4 grade precision ball bearing which from Japan.
3. Cross screw: P5 grade precision ball screw.
4. Main electrical components: SIEMENS brand.
5. Main hydraulic components: brand from TAIWAN.
6. PLC electrical control components: SIEMENS brand.
7. Servo motor and drive: SIEMENS brand.
4. Standard Accessories

1	Grinding wheel	2	Wheel flange
3	Wheel balancing base	4	Wheel balancing arbor
5	Extractor	6	Diamond dresser
7	Leveling pad	8	Anchor bolt
9	Tool box with tools	10	Electric magnetic chuck
11	Cooling system	12	Working light

5. Optional Accessories

Serial No.	Name of Article
1	rear splash guard
2	DRO (digital read out)
3	overhead parallel dresser
4	hydraulic tank oil cooling
5	cooling & suction device
6	magnetic separator
7	cooling magnetic paper filter
Note	6 and 7, select one just OK.

6. Feature
1. Well designed cast iron structure provides excellent dampening
2. Flange mount spindle cartridge for superior side grinding rigidity
3. Grinding spindle features low-maintenance preloaded high precision angular ball
bearings(NSK P4 grade)
4. "V" and flat type guide way which precision hand scrapped turcite saddle ways for smooth and long lasting performance
5. Table guideways are hardened, ground and counter-laminated with PTFE(TEFLON) to ensure high wear-resistance
6. Centralized automatic lubrication system ,supplies oil to guide-ways and lead-screws as the machine operates. This system ensures all the critical components are lubricated with the right amount of oil at all times
7. Separate hydraulic tank prevents heat and vibrations from being transferred to the machine
8. Electric components and functional modules are well arranged and packed in the electric cabinet, making maintenance and trouble-shooting easily accessible
9. Safety 24V control circuit power
7. Company & Factory
Nantong Kaite Machine Tool Co., Ltd.
A Sino-US joint venture machine tool company with KENT INDUSTRIAL (USA) INC.
KAITE specializes in manufacturing precision surface grinding and milling machine since 1999.
KAITE supply the USA quality machines and with China price.
KAITE is located in Nantong city, Jiangsu Province where near Shanghai city and welcome to visit us!
