Qt4-26 Semi-Automatic Cement Interlocking Paver Concerte Brick Block Making Machine Price List

Product Description

Product Description

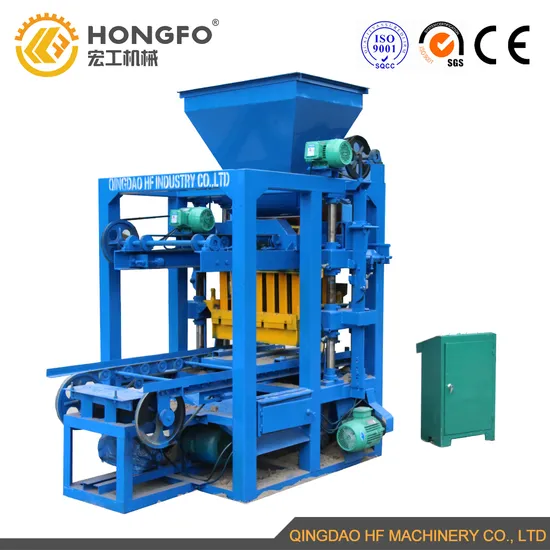

QT4-26 block making machine is one of our sell best block making machine, it is semi automatic, suitable for making all types of hollow blocks, solid block, pavers, curbstones and so on. Now in order to suit the overseas markets and ensure the machine work more efficiently, we have used many parts of some well-known brands imported from overseas countries, List as follows.
1. Switches and motor: switches will use Japan Omron, motor will use Simens or ABB brand.
3. Hydraulic system: hydraulic spare parts be ordered according to our block machine characteristics form Taiwan.
4. Material feeder: rotary mixer type material feeding cart, finshed products get higher density and strength.
5. Mould: newest heat treatment device assure longer mould life span.
6. Spare parts: follow the machine shipment, we supply suitable wearing parts, the after-sales services will be faster.
Product Parameters

Overall Dimension	2060x1730x2580mm
Vibration force	45KN
Main vibration form	Platform vibration
Cycle Time	26-35 seconds
Vibrating Frequency	2800-4500 rolls/minute
Motors Power	17.85KW
Pallet Size	880x480mm
Raw Materials	crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products	concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields	widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.

Product Advantages
1. Efficient frequency vibration
A. Output increasing: QT series block machines can have 15% larger production than machines with ordinary motor vibration.
B. Maintenance cost saving: Being assembled with frequency system,the frequency motor will not burn out at high temperature environment.
C. Noise reduction: By changing the phase angle of the eccentric block, the residual vibration and noise can be quickly eliminated
2. Material feeding system
The material is feeded by a cycle belt, the material feeding time controlled by PLC, which is more stable and faster, improving the production efficiency.
3. Intelligent control
The control system adopts Siemens PLC and other world-famous brands for sensor and electrical components, such as ABB, OMRON; which can expend 30% spanlife and 10% more accuracy.
4. Efficient hydraulic system
The hydraulic system adopts Japan Yuken Valve which is characterized by convenient parameter adjustment, high pressure resistance, low noise, energy saving and easy maintenance.
5. Multi-purpose block machine
By changing moulds, one machine can produce various types of blocks and bricks, such as hollow blocks, paving bricks (with or without face color), solid bricks, curbstones, slope protection bricks and so on.
Block Sample
Company Profile

QINGDAO HF MACHINERY Co., Ltd is the professional manufacturer and exporter of technology block machines. We had exported to more than 116 countries from the Philippines, Russia, Egypt, South Africa, Ghana, Oman, India, Armenia,Israel, Chile, etc.
We have more than 50 technicians to guarantee superior installations and service after-sales to help customer install the machine and undergo proper trainingabroad.
We adopt advanced vibration technology, durable hydraulic pressure system and system advanced Siemens PLC intelligent control system. By adopting the technology and control system above, our block machine has higher production efficiency and lower failure rate. The blocks produced by our machines have higher density, higher strength, more beautiful and accurate dimensions. It is our honor to serve some large block factories and companies of construction in Mexico, Belize, Honduras, El Salvador, Panama, Colombia, Ecuador, Peru, Bolivia, etc. We have a wealth of experience in the South American market.
We warmly welcome customers from all over the world who come to visit our factory and discuss long-term cooperation.
