US$2,100.00-2,200.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
YDHFM80-YDHFM100E
Certification
ISO9001:2015
Quality Control
ISO& 100% Inspection Before Deliveyr
Applicable
3ton,4ton,5ton,6ton,7ton,8ton Excavtor
Standard Flails Fitted
Hammer Flail
Transport Package
Plywood Case
Specification
As negotiated
Production Capacity
500sets/Month
Product Description

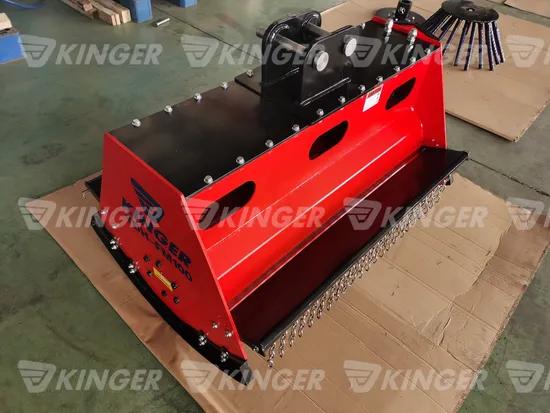

KINGER Hydraulic Flail Mower with excavator cradle hitch can be used for 3-8ton excavator.
This 2022 new products can efficiently cut weeds and twigs.
HIGH PERFORMANCE
- High speed and high radial force double row bearings are adopted.
- With anti-reverse rotary valve to prevent cavitation.
- High performance V-belt drive.
- Labyrinth seal protects bearings.
- Reinforce the frame structure.
- Stably high quality and cause to Low maintenance
................................................................................................................................................................................................................................................................................
KINGER FLAIL MOWER SPECIFICATIONS
Model | YDH-FM80 | YDH-FM100 | YDH-FM100E |
Applicable(T) | 2.5-4 | 3-6 | 6-8 |
working width(mm) | 800 | 1000 | 1000 |
Oil flow(Lpm) | 30-50 | 40-60 | 60-80 |
Max pressure(Bar) | 220 | 220 | 220 |
Rotor Speed(rpm) | 2200 | 2200 | 2200 |
Unit Size(mm) | 995x850x670 | 1260x860x680 | 1260x860X680 |
Unit weight(kg) | 225 | 285 | 310 |
CONVENIENT OPERATION:
- Optional self-leveling bracket, convenient operation
- Flange rotor, 360°rotary hammer.
Welcome to send inquiry
