Hthl-200p 0~2999microhm Circuit Breaker Test Contact Resistance Tester

Product Description

Brief introduction

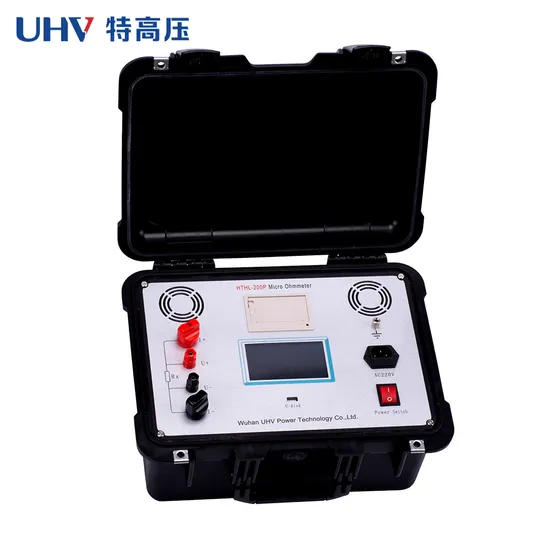

HTHL-200P Contact Resistance Tester measures up to the latest power system standards--DL/T845.4-2004 designed for measuring loop resistance of Switching Control Equipment using High-frequency switching power supply technology and digital circuit technology. Test current of the Tester is DC 100A and 200A which is recommended in the national standards. The tester can measure the loop resistance at this value and display the result in digital and with function of storage, printing and time setting. Another 50A and 150A are optional. It is high precision and good stability and can meet most power systems' requirements in onsite high-voltage switches maintenance and high-voltage switches factory loop resistance measurement.
Products features 1. High current, adopts new power techniques, can output current long time and continuously , overcome the malpractice of instantaneous current of the impulse type power, can effectively break through the oxide film of the switch contact, get accurate test results. 2. High stability, under strong interference, the last number displayed by the LCD within the range of ±1, with steady reading and good reproducibility. 3. High precision: adopts double channels high-speed 16bits Σ-Δ AD to sample, digital signal processing technique, the maximum resolution up to 0.01μΩ. 4. Intelligent: use high performance CPU, system can switch the measurement range according the size of the signal when testing, ensure the accuracy. The over-temperature protection circuit can auto stop output the current when the device exceeds the rated temperature to ensure the safety. 5. High quality: key components adopts imported components, uses temperature compensating circuit in perfect design which eliminates the effect to test results by temperature, meanwhile strengthen the resistance to shock by using the connector. 6. Powerful: current could be 50A, 100A, 150A or 200A measurement time 5s~599s, more powerful than other equipment. 7. Friendly man-machine interface: enter the data by rotating mouse, easy and convenient, can set the data, time by yourself, save and print the test results in time. 8. USB dump: Store the data to U disk by USB interface, combining PC software for further analysis and processing of the measurement data. 9. Easy to use: small in volume, light in weight.
Product parameters

Measurement range	0~2999.9μΩ
Resolution	0~99.99, 0.01μΩ	100.0~2999.9, 0.1μΩ
Measured current	DC 50A, 100A, 150A, 200A fixed output
Accuracy	±(0.5% rd+2d)
Continuous working time	5s~599s
Display	LCD
Communication mode	USB
Power supply	AC220V±10% 50Hz
Power of the whole machine	1200W
Maximum storage record	200
Service conditions	Temperature -10ºC~40ºC, humidity:≤80%RH
Dimension	380×310×260 mm
Weight	11Kg(not including accessory)

FAQ
1. Is your company a sales company or a manufacturer?
Wuhan UHV Power Technology Co.,Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.
2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is.
After the goods have been ordered, it takes about 7 working days for production if there are no accidents.
3. Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.
4. What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
