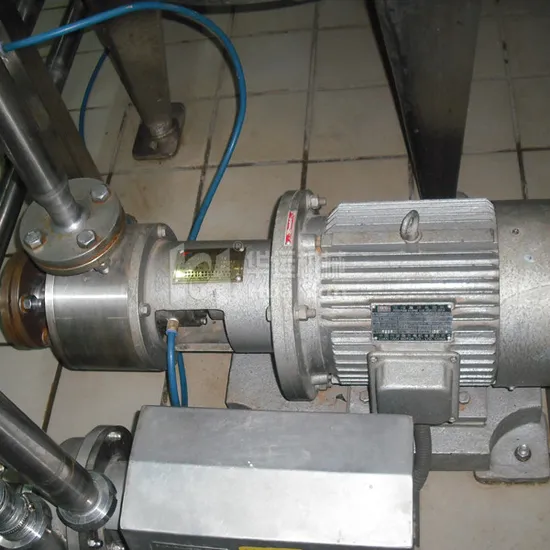

Sanitary Inline Homogenizing Mixer and Pump

Product Description

You can choose one-stage,two-stage or three-stage according to your requirement.You can choose three-stage inline homogenizer if you want the fineness of material is much better.
The high shear inline mixers working chamber is equipped with one set,two sets or sets of rotating stators,there are end suction ceilings and horizontal cantilever structures.Each level is two to six layers,and is composed of primary,secondary or three stage high speed rotating stators.The motor and the working head are elastically connected.The bearing can be greased or lubricated,it is easy to disassemble and install,and the cost of repalcement parts is low.The double-faced mechanical seal is used.The applicable temperature is -20-140 degree celsius,and the temperature range needs to be customized.

Model	Motor(KW)	Rotate speed(r/min)	Flow speed(m3/h)	Head(m)
HIIC405	4	2930	6.5	8
HIIC410	7.5	2930	8	8
HIIC415	11	2930	12	8
HIIC420	18.5/22	2930	25	8
HIIC435	37	2930	40	8
HIIC450	55	2930	60	8

Model	Motor(KW)	Rotate speed(r/min)	Flow speed(m3/h)	Head(m)
HIID405	4	2930	2.5	20
HIID410	7.5	2930	5.5	20
HIID415	11	2930	11	20
HIID420	18.5/22	2930	20	20
HIID435	37	2930	35	20
HIID450	55	2930	48	20

Model	Motor(KW)	Rotate speed(r/min)	Flow speed(m3/h)	Head(m)
HIIE405	4	2930	2.5	20
HIIE410	7.5	2930	5.5	20
HIIE415	11	2930	11	20
HIIE420	18.5/22	2930	20	20
HIIE435	37	2930	35	20
HIIE450	55	2930	48	20

Why choose Huayun as partner?
1 Huayun specialized in fluid equipment for more than 20 years and we have 15000m2 factory.
2 Huayun inline mixer has been used by many customers from China and foreign countries.
FAQ 1. Are you manufacturer?
Ans: Yes, we are factory with more than 20 years manufacturing experience.We have our own 15000m2 factory and one share-controlled company for manufacturing rubber hose. We welcome you to visit our factory and arrange person to inspect product before delivery.
2. What is the terms of payment?
Ans: T/T 30% deposit, T/T 70% before delivery. We'll share the photos of the products and packages along with invoice and packing list.For big order,we can also accept L/C.
3. What is the terms of delivery?
Ans: EXW, FOB, CFR,CIF
4. How about the delivery time?
Ans: We have mold for all models of our hose pump.Generally it takes 7-10 working days after receiving the advance payment. The specific delivery time depends on the items and the quantity of the order and the requirements of customers.
5. What is the warranty of the machine?
Ans: Our main machine enjoys 1 year warranty, all accessories broken can apply a new one during this time, and we offer video supporting installation ,operation and maintenance.
6. What is your packing like?
Ans: We use standard exporting wooden case.
7. Will you test the goods before delivery?
Ans: Yes, we will test 100% before packing.
