Agricultural Machine Hand-Held Mini Cultivator Rotary Tiller

Product Description

Product Description

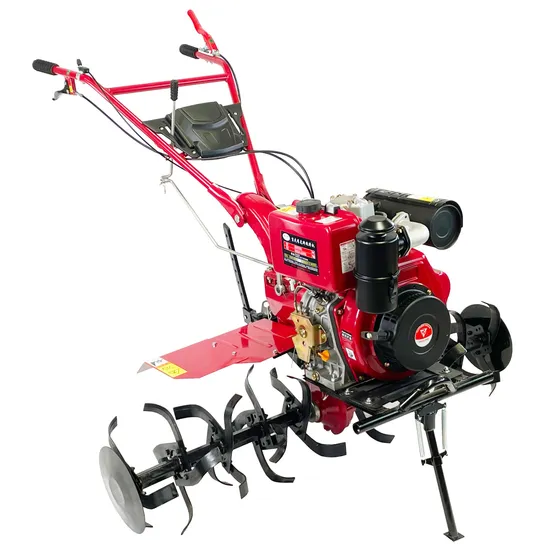

173F Diesel Power Weeder
The main function of 173F diesel power weeder is soil ploughing. It can efficiently break up the soil, loosen soil particles, increase soil aeration and water penetration, and create a favourable environment for crop growth. In addition, this model can mix fertilisers and soil while performing tillage, promoting even distribution and utilisation of fertilisers.
In addition to its ploughing function, the 173F diesel power weeder can also be used to perform operations such as furrowing, cultivating and mulching by replacing different attachments, achieving a multi-purpose effect. This makes it ideal for multifunctional agricultural management and particularly suitable for small-scale and diversified agricultural production activities.
EAGLE SINO's diesel power weeder are manufactured with high-quality materials and undergo rigorous durability tests to ensure reliability over long periods of time and have a longer service life and lower failure rate compared to other types of machines.

Product name			173F Diesel powered Power Tiller
model name			1WG4.0-100FQ-ZC
Specification Model			Handheld
Matching Engine	Model Name		173F Diesel engine
	Structure Type		Forced air-cooled, four-stroke, swashplate, single-cylinder
	Nominal Power		4.05 kW
	Nominal Speed		3600 r/min
	Starting Mode		Hand pull start
	Fuel Type		Petrol
Overall dimension(mm)			1680x1000x800 mm
Weights			78kg
Transmission mode			Gear
Connection mode			Direct connection
Adjustment of handrail		Horizontal direction	0 °
		Vertical direction	100°
Knife and roller		speed	Fast gear F:130 r/min Slow gear S:93 r/min
		Maximum turning radius	180 mm
		Total number of knives installed	24
Type of rotary ploughing knives			Dryland Knife
Main clutch		Type	Friction blade type
		Condition	Normally open
Ploughing width			1000 mm
Ploughing depth			≥100 mm
Working speed			0.1~0.3 m/s
Hourly productivity			≥0.04 hm²
Fuel consumption per unit of working area			≤30 kg/hm ²

Detailed Photos
★ Beautiful appearance, compact structure
The whole machine has beautiful appearance, compact structure, superior performance, easy and flexible operation, mainly used in dryland crop production, such as ridging, furrow planting operations.
★ High quality components
The box adopts direct-connected full gear transmission with large transmission torque; the direct-connected structure makes the machine run more stable, reduces vibration and noise, and improves the comfort of operation.
★ Portable Start
The starter is reasonably designed to enable the user to start the microtiller more easily and quickly, and requires less force when pulling the starter, which reduces the labour intensity of the user.
Company Profile
Chongqing Eagle Sino Machinery Co.,Ltd, specializing in the production of power tillers, power weeder, cultivator, water pump, generators, brush cutters is located in No. 178 longtang dadao, longshui, dazu, chongqing, China. With a commitment to quality and innovation, we have established ourselves as a leading manufacturer in the agricultural machinery industry. Our factory covers an extensive area and is equipped with advanced production facilities and technologies. Our state-of-the-art assembly lines ensure efficient and precise manufacturing processes, allowing us to meet the growing market demand. Our team of highly skilled engineers and technicians possess extensive expertise in the design and development of micro tillers.
They constantly strive to improve the performance, durability, and functionality of our products to provide farmers with reliable and efficient tools for their agricultural operations. In addition to our focus on quality, we also place great emphasis on customer service. Our dedicated sales and support teams are always ready to assist customers with their inquiries and provide prompt after-sales support. With years of experience and a passion for excellence, our products are dedicated to delivering high-quality products and services to customers around the world, contributing to the modernization and efficiency of agricultural production.
Packaging & Shipping
FAQ
Q1:Do you support OEM/ODM?
A1:Yes.We can offer OEM/ODM service.
Q2:Are the engines of rotary tiller machines customizable?
A2:Yes. We can customize the engine according to customer's design.
Q3:What is your MOQ of power tiller?And how long is your processing time?
A3:1 sets. If there is no stock, it will be 10-20 working days, if there is stock, it can be sent out immediately.
Q4:How long is your warranty?
A4:1 year or 6 months warranty whichever comes first except the wearing and tearing parts.
Q5: What are your terms of payment?
A5: For large purchases, we can accept 30% deposit and 70% final payment when the goods are ready.
Q6: How do you ship and how long does it take to get there?
A6:We usually ship by express or ocean freight, other shipping ways are also available.
Q7:How do you handle product failures?
A7:First of all, our products are manufactured under a strict quality control system. And there is a strict inspection process before shipment. The rate of defective products and low. For defective batches, we will repair and resend them to you, or we can discuss a solution, including a re-recall, depending on the actual situation.
