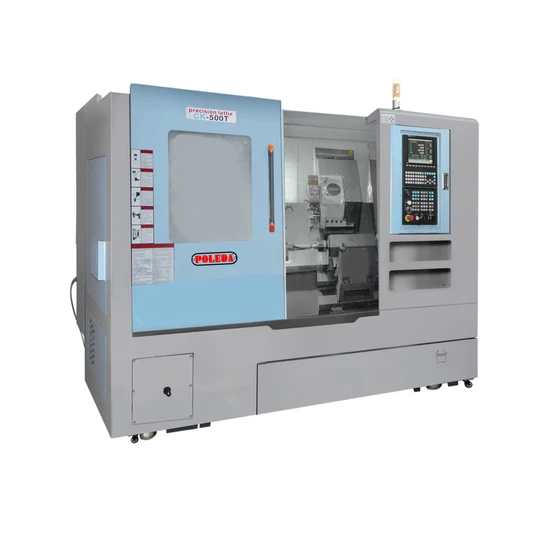

500t High Precision Multi-Function CNC Lathe Oblique Bed CNC Lathe

Product Description

Product Description
CNC Lathe Product Performance Characteristics
Our Numerical Control Lathe Products are the epitome of engineering excellence, boasting an array of remarkable characteristics. Experience unmatched high performance and precision that transform your manufacturing process. Enjoy the tranquility of low noise operation and marvel at its multi-coordinate linkage that seamlessly adapts to the most intricate of shapes. It's a stalwart ally in machining, guaranteeing stable quality and dexterity with complex forms, all while slashing production preparation time. Revel in the sophisticated charm of its high-efficiency, precision-driven automatic programmable control, paired with reliability you can count on, and a foolproof operational mode that invites ease and simplicity.
High Performance and High Precision: Our CNC Lathe Machine stands as a paragon of cutting-edge technology, executing numerical control programs with finesse. It effortlessly performs cutting operations on outer cylinders, forming surfaces, threads, and end faces, all while securing superb processing quality and pinpoint precision.
Low Noise: Revel in the serenity of our spindle's silent operation, running with unrivaled stability, thanks to the innovative arc tooth belt direct spindle design, delivering power efficiently and quietly.
Multi-Coordinate Linkage: Embrace the power of multi-coordinate linkage, empowering you to craft even the most intricate and complex shapes with precision and ease.
Strong Adaptability: Our machine showcases exceptional adaptability, perfectly attuned to the demands of mold production and other single production items. It provides an optimal processing method cherished by manufacturers across the globe.
Automatic Programmable Control: Master the art of automation with ease. Our lathe features automatic numerical control programming that orchestrates shaft movement, spindle position changes, and chip control like a maestro, thanks to its fully automatic programmable PLC and the 32XTA standard numerical control system, ensuring high precision and automation.
High Efficiency and Reliability: Imagine the cost-efficiency and productivity boost as one operator seamlessly manages 4-10 machines. The allure of its aesthetic design is matched only by its robust quality, paving the way for significant labor cost reductions.
Fool Operation Mode: Delight in the simplicity of our user-friendly system. Achieve unrivaled efficiency, precision, and reliability effortlessly, with intuitive operation facilitated by a state-of-the-art vibration plate.
These exemplary characteristics solidify CNC lathes as indispensable tools in the world of machining, establishing them as frontrunners with a plethora of applications and a prestigious position in the industry.
Product Parameters
CNC Lathe Product Introduction
The CNC lathe, an epitome of high performance and precision, operates with remarkably low noise. This automatic lathe is ingeniously designed for seamless automatic loading, feeding, and feed functions. Its versatility shines in the automotive and motorcycle parts sectors, refrigeration components, water heating valves, and electronic devices. Additionally, it serves mechanical hardware and various batch processing industries, significantly reducing labor dependency. This marvel of engineering excels in processing materials such as copper, aluminum, iron, zinc alloy, and plastic, with typical lengths ranging from 100mm to 450mm. Perfectly tailored for the automatic feeding of regular products, it harnesses the power of NC panel programming to effortlessly automate straight lines, slashes, and arcs. With attributes of high efficiency, precision, and unwavering reliability, this CNC lathe is the paragon of industrial excellence.
CNC lathes operate through CNC programming which orchestrates the movement of shaft and spindle systems, enabling precise chip cutting and seamless automatic processing. The standout features include a high-reliability automatic pneumatic control system, motor control boasting 1.5 to 4 kW, and precision apparatus for stable speeds of 32 or 60 rpm. The integration of a PLC control system offers sophisticated automation with a user-friendly Chinese display, simplifying operations and slashing labor costs significantly. Adaptability is at its core, with the PLC system capable of program modifications to suit diverse product specifications. The simplicity of operation allows one individual to manage 4 to 10 machines efficiently, employing an intuitive fool-proof mode.
Additionally, this CNC lathe boasts a forward 45-degree oblique bed structure, enhancing rigidity and facilitating easy chip removal, maintenance, and adjustments. Its fully enclosed open-door design exudes elegance with sleek lines and excellent visibility of operations. The sliding saddle incorporates a Taiwan-imported high-precision rolling guide rail, ensuring precise repositioning and rapid movement up to 24M on the z-axis. Safety and stability are paramount with its hydraulic clamping mechanism. The lathe accommodates customer specifications via a row knife system, offering shorter processing times with consistent accuracy. It features a dual-channel, dual-program control system from Taiwan, enabling different sizes and shapes to be processed concurrently. Additional capabilities such as milling, drilling, and tapping are available based on customer requests. The machine's main drive system can be configured to include a frequency conversion drive or a servo main drive system, allowing for seamless continuous variation. The smooth, noiseless operation of the main shaft, facilitated by the direct power transmission through an arc tooth belt, exemplifies cutting-edge technology in automatic chip removal.

Name	CNC lathe
item		Unit	400T-6Technical parameter	500T-8Technical parameter
Maximum turning diameter on the bed		mm	480	580
Maximum cutting length		mm	400	500
(Recommended) Maximum cutting diameter		mm	350	400
Maximum turning diameter on a skateboard		mm	230	280
spindle			Taiwan unit spindle	Taiwan unit spindle
Spindle end type and code			A2-5	A2-6
Main shaft hole diameter		mm	Ф56	Ф66
Maximum pass bar diameter		mm	Ф45	Ф52
headstock	Spindle speed range	r/min	6000	4500
	Service speed of spindle	r/min	50-4500	50-3800
	Maximum output torque of spindle	Nm	195	190
	Main motor output power	kW	7.5	11
chuck	Chuck type	mm	8"Ф200	8"Ф200
Dota	servo		Station 80-8	Station100-12
X-axis fast moving speed		m/min	30	30
Z-axis fast moving speed		m/min	30	30
X-axis travel		mm	260	270
Z-axis travel		mm	430	610
tailstock	travel	mm	350	350
	Sleeve diameter	mm	Ф65	Ф65
	Sleeve travel	mm	80	80
	apex	MT	4	4
Tool size	Cylindrical cutter	mm	25×25	25×25
	Boring bar diameter	mm	Ф20/Ф18/Ф16/Ф14	Ф40-32/25/20/16/12
Machine weight		kg	3500	4300
Overall dimensions of the machine (L × W × H)		mm	2100*1600*1700	2300*1600*1700

Detailed Photos
Our Advantages

Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo, and more. For some standard items that we have in stock, the MOQ is just 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on maintaining high-quality levels. Moreover, the principle we always uphold is to providecustomers with better quality, better prices, and superior service.
3.What's your main products of your company?
A: We specialize in a variety of machines, including CNC Machine, Lathe Machine, Milling Machine, Grinding Machine, Vertical Machining Center, DrillingMachine, Radial Drilling Machine, Sawing Machine, and more.
4. What are your trade terms?
A:Ex-works, FOB, CFR, and CIF are all acceptable.
5.What's the Payment Terms?
A: T/T, 30% initial payment when ordering, 70% balance payment before shipment.
6.What CNC system do you use?
A: FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN. It depends on your preference.
7.How can I choose the most suitable machines?
A: Send us your product drawings and applications, and we will recommend the most suitable machines for you.
8.What kind of package do you offer?
A: Normally, we use plywood cases to ensure all goods are in good condition. Customized packaging is also available. Customized packages can be accommodated.
9.Can your plant do OEM?
A:Yes, absolutely. We can do both OEM and ODM for our customers.
10.How about the warranty?
A: The warranty period is one year after delivery. Even beyond the warranty period, we offer lifetime service for our machines.
