China Factory Wholesale Stone Crushing Machine Competitive Price

Product Description

China Factory Wholesale Stone Crushing Machine Competitive Price
Stone crushing ma hine from our factory include: jaw crusher,impact crusher,cone crusher,hammer crusher,double roller crusher,ring hammer crusher,vertical shaft impact crusher,fine crusher,etc

stone crushing machine Applied material: limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc The stone crushing machine -Jaw crusher is used as Primary and Secondary crushers for crushing all kinds of minerals and rocks with compressive strength less than 320 mpa.
There are two types of Jaw crusher: coarse jaw crusher and fine jaw crusher. We also manufactures Mobile jaw crusher, Single toggle jaw crusher and other Jaw breakers.

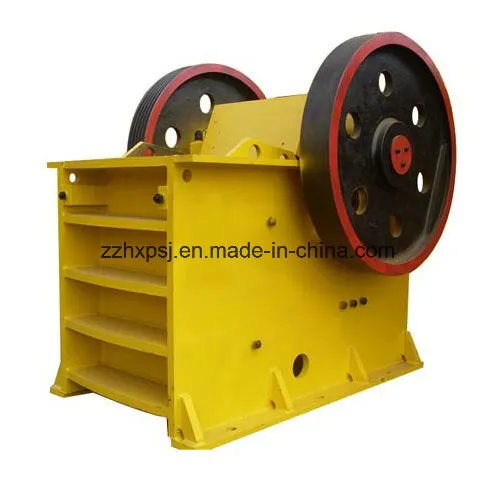

The Inner Structure of the stone crushing machine -jaw Crusher: It is made up of frame, eccentric shaft, grooved wheel, and flywheel, moving jaw, side guard plate, and toggle plate, toggle backseat, adjusting screw, returning spring, fixed jaw plate and moving jaw plate. Toggle plate is of safety function.
Stone crushing machine -jaw crusher working principle:
The motor drives the belts and the belt wheels, and make the movable jaw up and down by the eccentric shaft. When the movable jaw descends, the angle between the fixed jaw and the movable jaw becomes smaller, and the materials can be crushed; when the movable jaw rises, the angle between the fixed jaw and the movable jaw becomes bigger; and the movable jaw plate leaves from the fixed jaw by the function of the tension rod and the spring. And then the crushed materials are discharged from the lower outlet of the crushing cavity.

Stone crushing machine Main Features and Benefits:
1. High capacity.
2. High reliability.
3. Adjustable for easy wear parts.
4. Over-loading protection.
5. Simple structure and easy to operate.
6. Long service time.
7. Easy replacement of wear and spare parts.
8. Less costly and Easy to install.
9. Wide range of choices.
stone crushing machine main models and technical specifications :

Model	Feeder Opening (mm)	Max. Feeding Size (mm)	Capacity (t/h)	Motor Power (KW)	Weight (t)
PE150×250	150×250	125	1-3	5.5	1.5
PE250×400	400×250	200	5-12	15	3
PE400×600	600×400	350	15-65	30-37	7
PE500×750	500×750	425	40-125	45-55	12
PE600×900	900×600	480	90-195	55-75	17
PE750×1060	1060×750	630	110-350	90-110	29
PE900×1200	900×1200	750	220-520	110-132	50
PE1000×1200	1000×1200	850	315-650	110	51
PE1200x1500	1200x1500	950	400-850	160	100.9
PEX150×750	150x750	120	5-16	15	3.5
PEX250×750	750×250	210	15-30	22-30	5
PEX250×1000	1000×250	210	15-50	30-37	7
PEX250×1200	1200×250	210	20-60	37-45	8.5
PEX300x1300	300x1300	250	20-120	75	11

stone crushing machine package and shipping :
About us :
Zhengzhou Hengxing Heavy Equipment Co.,Ltd is a joint stock corporation integrating with research, manufacture and sale which targeted at the large and medium sized series of heavy equipments. Our main products are stone crushing machines, sand making machine ,ball mill machine ,mineral ore dressing machines,rotary dryer,rotary kiln, AAC block making machine,coal briquetting machine,which were widely used in mineral processing and construction industry.
In order to send quotation for you ,please send the below information :
(1) What's the materials to process?
(2)What's the feature of the materials? Like density, moisture degree,input particle size and out put particle size.
(3)What's your capacity per hour?
(4)What's the machine you want to buy?A single machine or a production line.
Our service:
Pre-sale service
Provide you with project and process design, formulate the plan for purchasing, design and manufacture the products according to your special requirements and train your operators.
Selling service
Help you to check the equipments before acceptance, draw up the construction scheme and the detailed process.
After-sale service
Dispatch our technicians to your construction site to guide the installation, test the site and train your operators.
Response within 30 mintues with technical problems 365 days online service 15 months quality guarantee Engineer installation and commissioning overseas
