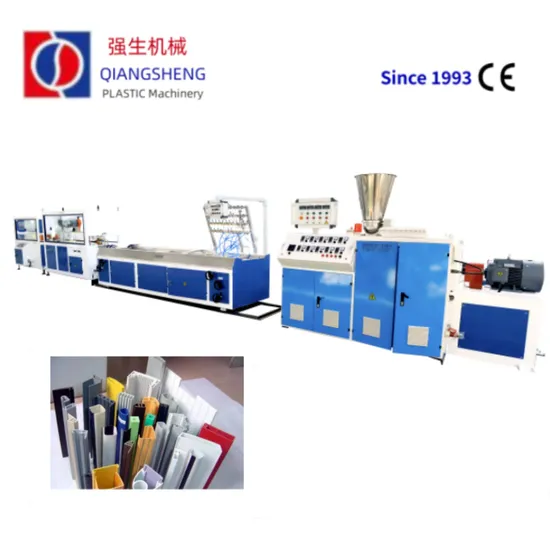

PVC UPVC Profile Extruder/Extrusion Line/Making Machine

PVC profile extrusion production line is mainly used for the extrusion of PVC door and window profiles, wide door panels, window panels, and porous pipe threading pipes (suitable for holes, six holes, seven holes, nine holes, etc.). For different sections and die heads, conical twin/flat twin screw extruders of different specifications can be selected, and equipped with corresponding vacuum shaping tables, traction machines, cutting machines, turning racks, etc.

Model	YF120	YF180	YF240	YF300	YF600
Product Max size	120X50mm	180x50mm	240x100mm	300x120mm	550x120mm
Extruder	SJSZ45/90	SJSZ51/105	SJSZ65/132	SJSZ65/132	SJSZ80/156
Capacity	120KG/hr	150kg/hr	300kg/hr	300kg/hr	400kg/hr
Production length	18m	20m	24m	24m	28m

Features of PVC Profile Production Line:
The main machine capacity can be selected arbitrarily between 60-700kg/h. The traction machine adopts our company's lifting technology, which has stable operation, good reliability and large pulling force. The vacuum shaping table adopts an expanded eddy current cooling system, which is conducive to cooling and shaping, and meets the requirements of high-speed extrusion. The movement speed of the cutting machine is synchronized with the traction speed. The moving parts are controlled by imported PLC, with reasonable design, stable operation, and can be automatically cut at a fixed length. Sawing can provide a powder suction and dust removal device, and there is also a hot knife cutting structure without dust. Equipped with different molds, the length of the shaping table can be selected in specifications such as 4m, 5m, 6m, 8m, 9m, 11m, 15m, etc. Equipped with a flat double main machine, it is particularly suitable for high-speed extrusion production of profiles.
For cutting machines, there are two types. Ordinary round cutting knife and hot cutting knife, depending on product performance and customer requirements.
1. Model SJSZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.3. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.4. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.7.speed controlled by inverter, saving power and easy to adjust speed8.extruder temperature controlled by Omron intelligent controller, temperature fluctuation self adjusting9.low power consumption: lowest total production line consumption 25kw/hour10. economical price, suitable for large scale investment.
DoubleScrew Extruder.
1.1 Simens Touch Screen and PLC
1.2 Spiral Structure of Barrel
1.3 Special Design of Screw
1.4 Air Cooled Ceramic Heater
1.5 High Quality Gearbox
Based on 33:1 L/D ratio for screw design, we have developed 38:1 L/D ratio. Compared with 33:1 ratio, 38:1 ratio has advantage of 100% plasticization, increase output capacity by 30%, reduce power consumption up to 30% and reach almost linear extrusionperformance.
Extrusion Die Head.
2.1 Moving Device of Die Head
2.2 Die Head Rotary Device
2.3 Heat Exhausting Device
2.4 Cooling Device for Core
Extrusion die head apply spiral structure, each material flow channel is placed evenly. Each channel is after heat treatment and mirror polishing to ensure material flow smoothly. Die head structure is compact and also provide stable pressure, always from 19 to 20Mpa. Under this pressure, pipe quality is good and very little effect on the output capacity. Can produce single layer or
multi-layer pipe.
Profile cooling platform
3.1 Strong Cooling for Calibrator
3.2 Better Support for Profile(Wall Panel)
3.3 Silencer
3.4 Pressure Relief Valve
Profile cooling platform is used to shape and cool profile, so as to reach standard pipe size. We use double-chamber structure. First chamber is
in short length, to ensure very strong cooling . As calibrator is placed in the front of first chamber and profile shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of profile.
Haul off unit.
5.1 Pipe Clamping Device
5.2 Water Tank Filter
5.3 Quality Spray Nozzle
5.4 Pipe Support Adjusting Device
5.5 Pipe Support Device
Haul off unit provides sufficient traction force to pull pipe stably. According to different pipe sizes and thickness, our company will customize traction speed, number of claws, effective traction length. To ensure match pipe extrusion speed and forming speed, also avoid deformation of pipe during traction.
Cutter.
6.1 Aluminum Clamping Device
6.2 Advanced Hydraulic System
6.3 Dust Collection System
Cutter controlled by Siemens PLC with chamfering function, working together with haul off unit to have precise cutting. Customer
can set the length of pipe they want to cut.

Model	YF120	YF180	YF240	YF300	YF600
Product Max size	120X50mm	180x50mm	240x100mm	300x120mm	550x120mm
Extruder	SJSZ45/90	SJSZ51/105	SJSZ65/132	SJSZ65/132	SJSZ80/156
Capacity	120KG/hr	150kg/hr	300kg/hr	300kg/hr	400kg/hr
Production length	18m	20m	24m	24m	28m

The company's main products(Click Text)

PVC Pipe Extrusion Line

PVC Fiber Pipe/Hose Extrusion Line

PE Two-layers Pipe Extrusion Line

PE Pipe Extrusion Line(Large Diameter)

PE Corrugated Pipe Production Line

PVC Foam Board Production Line

3-Layers PPR Pipe Production Line

PVC Plastic Windows Machine PVC Ceiling Production Line PVC Window Shutter Machine PVC Rain Gutter Machine PVC Corner Production Line PVC Great Wall Panel Machine PVC Cable Trunking Machine

PP PE Two-stages Pelletizing Line PP PE One-stage Pelletizing Line PVC Hot-cutting Pelletizing Line PP PE Water Ring Pelleting Line

Application:
The profile has the feature of low waster of energy, good performance, high speed and high efficiency, atc. The finished products produced by this machine has he feature of good surface, stronger compression resistance, light and heat stability, low size-changing and ageing resistance.
