Heat Pump high scop rating and quiet operation

Product Description

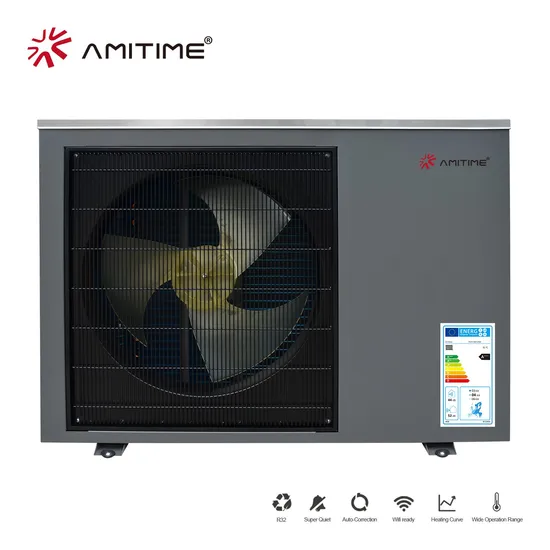

heatSTAR-DC Inverter Air to Water Heat Pump
Amitime's heatSTAR system has been developed with the idea in mind for maximum possible energy savings, through its ultra high scop rating and quiet operation. Latest development in DC inverter technologies and their application in various intemal componentsincluding compressor, fan, and water pump, has been the major player in the success of our heatSTAR line.

Model			PAVH-06V1FBA-250L	PAVH-09V1FBA-250L	PAVH-12V1FBA-250L
Power supply
Power Supply / Refrigerant		V/Hz/Ph	220-240/50/1 - R32
Performance
Max. Heating Capacity (1)		kW	6.5	9.2	11.6
C.O.P (1)		W/W	4.61	4.38	4.3
Heating Capacity Min./Max.(1)		kW	3.5 / 6.5	4.3/9.2	5.5 / 11.6
Heating Power Input Min./Max.(1)		W	758 / 1410	927/2097	1107 / 2683
C.O.P Min./Max.(1)		W/W	4.5 / 4.7	4.38/4.71	4.3 / 4.9
Max. Heating Capacity(2)		kW	6	8.6	11.2
C.O.P (2)		W/W	3.46	3.37	3.45
Heating Capacity Min./Max.(2)		kW	3.15 / 6	3.9/8.6	4.9 / 11.2
Heating power input Min./Max.(2)		W	943 / 1732	1162/2550	1401 / 3263
C.O.P Min./Max.(2)		W/W	3.34 / 3.56	3.37/3.58	3.3 / 3.5
Max. Cooling Capacity (3)		kW	7.45	9.5	9.8
E.E.R (3)		W/W	4.05	4.23	3.9
Cooling Capacity Min./Max.(3)		kW	6.22/7.45	6.7/9.5	7.2/9.8
Cooling Power Input Min./Max.(3)		W	1400/1863	1679/2242	1791/2510
E.E.R Min./Max.(3)		W/W	4.05/4.45	4.0/4.6	4.0/3.8
Max. Cooling Capacity (4)		kW	4.5	7.2	8.5
E.E.R (4)		W/W	2.7	2.8	2.9
Cooling Capacity Min./Max.(4)		kW	3.5/4.5	4.9/7.2	4.9 / 8.5
Cooling Power Input Min./Max.(4)		W	1.33/1.68	1451/2366	1358 / 2987
Workable Ambient Temperature Range		ºC	-25~43
Min. System Water Temperature (Heating / Cooling)		ºC
Min. Floor Area for installation, operation and storage		m2	7	17	28
Min. Area of Pipe-work		m2	7	17	28
Max. Operation High Pressure		MPa	4.2
Max. Operation Low Pressure		MPa
Components
Compressor	Type - Quantity/System		Twin Rotary - 1	Twin Rotary - 1	Twin Rotary - 1
Fan	Quantity		1	1	1
	Airflow	m3/h	2500	3150	3150
	Rated power	W	34	45	45
Noise Level (sound power)	Indoor/Outdoor	dB(A)	44/52	44/53	44/52
Water Side Heat Exchanger	Type		Plate Heat Exchanger
	Water Pressure Drop	kPa	26	26	26
	Piping Connection	Inch	G1"	G1"	G1"
Hydraulics
Allowable Water Flow	Min./Rated./Max.	L/S	0.21/0.29/0.35	0.26/0.43/0.52	0.34/0.57/0.68
Dimensions and weight
Net Dimension(L×D×H)	Indoor Unit	mm	600x650x1720	600x650x1720	600×650×1720
	Outdoor Unit	mm	1010x370x700	1165x370x845	1165x370x845
Net Weight	Indoor Unit	Kg	121	121	121
	Outdoor Unit	Kg	57	70	77
Note:
(1) Heating condition: water inlet/outlet temperature: 30ºC/35ºC, Ambient temperature: DB 7ºC/WB 6ºC;
(2) Heating condition: water inlet/outlet temperature: 40ºC/45ºC, Ambient temperature: DB 7ºC/WB 6ºC;
(3) Cooling condition: water inlet/outlet temperature: 23ºC/18ºC, Ambient temperature: DB 35ºC/WB 24ºC;
(4) Cooling condition: water inlet/outlet temperature: 12ºC/7ºC, Ambient temperature: DB 35ºC/WB 24ºC;
(5) The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the stickers on the unit.

AMITIME was set up in 2003, and is a professional manufacturer in China and a leading supplier of developing and providing energy saving products and cost-efficient solutions for European market.
AMITIME has established an effective and dynamic platform for development and manufacturing, and has reached strategic cooperation with ES, Parker Davis and other international heat pump and air conditioning companies. Through a wider European and global perspective, the joint cooperation has been very competitive and commercial successful to strengthen our leading position for overseas market.
AMITIME has worked in the R&D of air source heat pump with DC inverter compressor technologies for more than 18 years. As one of the pioneer developers of DC inverter heat pump, AMITIME has successfully launched four products series, including DC inverter air source heat pump, commercial inverter heat pump, swimming pool heat pump, fan coils.
AMITIME continually strives to meet customers' demands, and becomes very professional on providing OEM/ODM solution to our international distributors and partners, and keeps on delivering most competitive, high energy efficient, good quality and cost effective products for global market.
