Heavy Duty Hlqd Multi Stone Cutting Machine

Product Description

Product Description
QSQ-2200/2500/3000

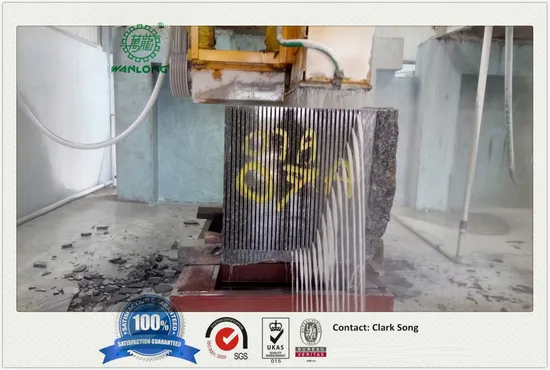

QSQ-2200/2500/3000 combines different diameters of blades working simultaneously as multiblade cutting. It has screw rod lifting system and hydraulic lifting system for your choice. Heavy duty structure, logical control system together with "Wanlong" blade give high production and also make the finish slab with flat surface, no tapper.
It is also flexible in modification for single blade cutting.
Technical Parameters

Model	Unit	QSQ-2200	QSQ-2500	QSQ-3000
Max. diameter of blades	mm	φ2200	φ2500	φ3000
Max. No. of blades	pcs	9-12	9	5
Recommended Thickness of Blade	mm	5.5/6.5	5.5/6.5	6.5/7.2
Main motor power	KW	45/55	45/55	65
Max. Cutting Size(L x W x H)	mm	3200 x 1800 x 950	3000 x 1800 x 1100	3500 x 1800 x 1350
Overall dimensions(L x W x H)	mm	8000 x 4000 x 5500	8000 x 4000 x 5500	8500 x 4000 x 6100
Approximate weight	Kg	12000	12000	17000

Features
High efficiency for cutting block into slabs with multi-blade combination, this machine is the ideal equipment for producing large slabs.
1. SIEMENS main motor with stronger seats.
2. PANASONIC PLC and inverter.
3. Encoder for X, Y, Z movement.
4. Strong cast iron HT200.
5. Double V-shape guide rails enhance the smooth cutting and movement.
6. Touch sensitive Panel Easy for worker to operate.
7. Locking system on vertical beam to protect the machine collaption.
8. Fast hydraulic lifting system.
