XL6230c Knee Type RAM Milling Machine with Dro High Quality

Product Description

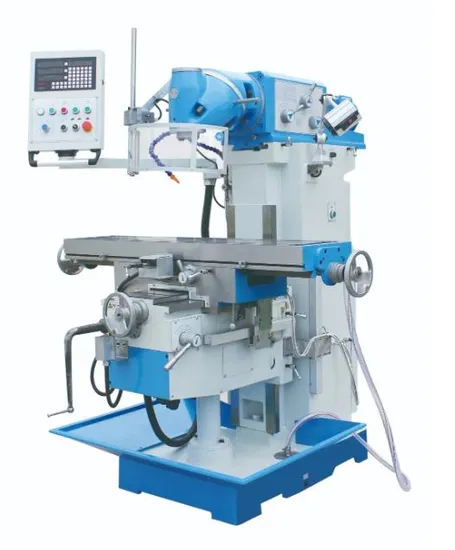

XL6230C universal manual milling machine for metal
Product Description
√ universal swivel head can swivel 360°, vertical & horizontal milling are available
√ spindle is driven by gearbox directly, ensures powerful milling
√ X/Y/Z-axis feedings are driven by servo motor, good accuracy & low noise
√ machine is easy to operate (as shown in figure: A knob select manual / automatic feeding mode, B lever select X/Y/Z feeding, C lever select +/- feeding direction)
√ brief design control panel, easy to operate
√ water cooling system, lubrication system are included


Product Parameters

Items	XL6230			XL6230C
Worktable size (L×W)	1270x300mm			1370x300mm
T slot (Width x No. x pitch)	14x3x80mm
Max. load of table	300kg
Table rotation	optional: ±45˚
Distance from spindle nose to table	100-500mm
Travels
Worktable longitudinal travel (X)	720mm	820mm	900mm	1000mm
Worktable cross travel (Y)	300mm (If with DRO:280mm)		380mm (If with DRO:360mm)
Worktable vertical travel (Z)	400mm
Spindle
Spindle speed	11 steps; 45-1660rpm
Spindle taper	7:24, ISO40
Motor power	3kW
Milling head swivel angel	±360°
Feed
Rapid feed (X/Y/Z)	1335/1335/1000mm/min
Feed range (X/Y)	30-830mm/min
Feed range (Z)	23-625mm/min
Others
Machine size (L×W×H)	1730x1760x1700mm			1830x1760x1700mm
Net weight	1800kg			1900kg

Standard Configuration

No.	Item	Specification
1	lubrication system with manual oil pump	-
2	water cooling system with spray nozzle	-
3	work lamp	-
4	supporting frame for horizontal milling	-
5	draw bar	-
6	mill cutter shank	ISO40-Ф27
7	milling chuck with collects	ISO40, 8pcs
8	machine vise	5"
9	tools & metallic tool box	-

Optional Configuration

No.	Item	Specification
1	3-aixs Digital Read Out	-
2	Dividing head	F11100A
3	Rotary table	160mm
4	Machine vise	6"
5	milling chuck with collects	ISO40, 15pcs
6	Clamping kits	-
7	New design aluminum hang arm	-
8	Spindle protection cover	-
9	Worktable protection cover	-
10	LED work lamp	-
11	Automatic centralized oil lubrication	-
12	Schnider electric components	-

Packaging & Shipping
Delivery time: generally 60 days production time after confirmation of order
Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)
Delivery type: 20GP container is enough to load

Certifications
Products are strictly according to European standard, with CE, ISO9001 certificates.
FAQ
1. What is the MOQ ?
Minimum order quantity is 1 set.
2. What is the payment term ?
Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videosOther payment terms are also acceptable after discussion.
3. What is the trade terms ?
Jsually is FOB.
Others like CIF,CFR,EXW...... are also acceptable.
4. How long is the guarantee ?
12 month after machine's delivery from factory.
Within waranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5.What kinds of machines do you supply?
Company specialized in producing CNC & manual milling machines. Include:
CNC gantry machining center
Vertical machining center
Simple NC milling machine
Conventional manual milling machines (Vertical, Horizontal, Universal, Turet mil, Swivel head mil, Power sliding ram type, Bed type,Tool milling machine, Gantry type etc.)
6.How can I believe your company ?
XILI Machine Tool has more than 20 years milling machine production history. covers an area of about 50000 square meters,with 20 million CNY fixed assets and more than 300 employees.
Xili Machine Co.,Ltd. is a ISO9001 company, all products are with CE certificate.
Welcome your inquiry and visiting.
