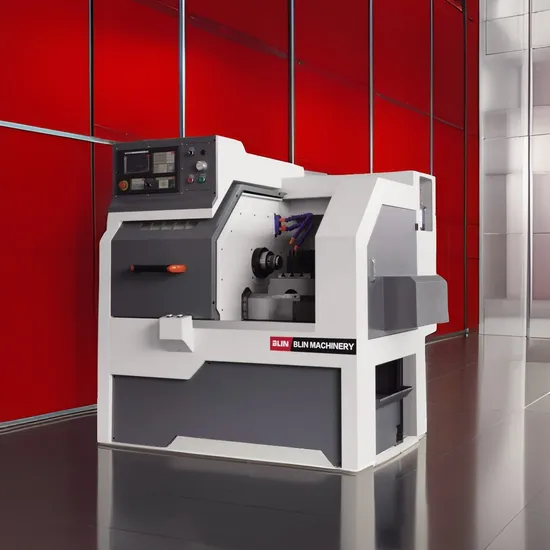

Low Cost Small CNC Lathe Machine Price (BL-Z0632)
| US$11,000.00-12,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
BL-Z0632
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Chuck Size
5′′/6′′
Max. Swing Dia. Over Bed
400mm
Max. Swing Dia. Over Slide
120mm
Max. Turning Length
200mm
Spindle Speed
3000rpm
Spindle Type
A2-5
Spindle Bore
48mm
Spindle Motor
3kw
Tool Post
Gang Tool/4t Tool Turret
Transport Package
Wooden Case
Specification
400*200mm
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
480units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
Low cost small cnc lathe machine price(BL-Z0632)
- TAIWAN linear guideway and ball screw
- Super high performance-price ratio
Details:
| Item | Specification | Unit | BL-Z0632 | |
| Capacity | Chuck size | / | 5''/6'' | |
| Max. swing dia. over bed | mm | Φ400 | ||
| Max. swing dia. over slide | mm | Φ120 | ||
| Max. turning length | mm | 200(chuck) | ||
| Spindle | Spindle speed | rpm | 3000 | |
| Spindle type | / | A2-5 | ||
| Spindle bore | mm | Φ48 | ||
| Spindle motor | kw | 3 | ||
| Clamping device | / | Hydraulic collet/Hydraulic chuck | ||
| X/Z axes | X/Z axes travel | mm | 320/330 | |
| X/Z axes servo motor | N.m | 4/4 | ||
| X/Z axes rapid move speed | m/min. | 20/20 | ||
| X/Z ball screw O.D. | mm | Φ25/Φ32 | ||
| X/Z linear guideway width | mm | 25/30 | ||
| X/Z axes positioning accuracy | mm | 0.03/0.03 | ||
| X/Z repeatability accuracy | mm | 0.005/0.01 | ||
| Tool post | Tool post | / | Gang tool/4T tool turret | |
| Toolshank size | mm | 20×20 | ||
| Tailstock | Tailstock | / | N/A | |
| Others | Overall size | mm | 1700×1400×1700 | |
| N.W. | kg | 1200 | ||
Main parts list:
| Item | Brand |
| Bearings | CHINA top |
| Ball screw | TAIWAN |
| Linear guideway | TAIWAN |
| Chuck& cylinder | TAIWAN-AUTOGRIP |
| Main electric parts | FRANCE-SCHNEIDER |
Standard configuration:
-GSK980TC3 CNC Controller
-Hydraulic collet
-Gang tool
Optional configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic chuck
-4 station tool turret
