Tiles Making Machine Glazed Machinery Glazed Tiles Making Machine Manufacture Zinc Galvanized

Product Description

Product Description

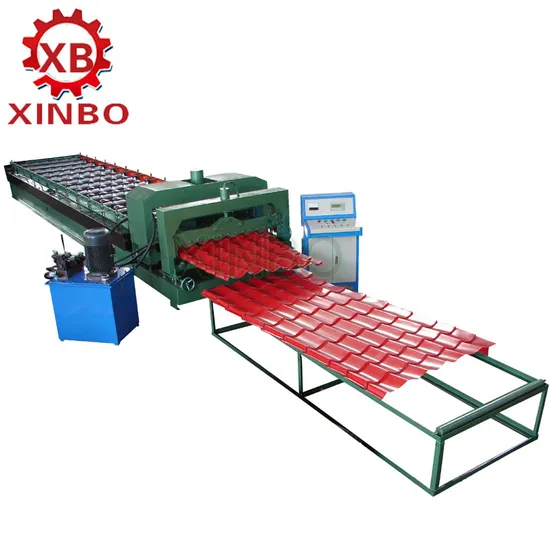

Aluminium glazed tile roll forming machine
OEM ODM customized


Detailed Photos

Can be customized Product Parameters

Suitable material	Color steel sheet , galvanized steel sheet
Main motor power	4KW with Cycloidal reducer
Hydraulic station power	4kw
Hydraulic oil	40#
Thickness	0.3-0.8mm
Diameter	Φ95mm
Electric tension	380V 3phase 50HZ
Material of roller	High grade 45# forged steel
Rolling galvanization thickness	0.05mm
Processing speed	10-15m/min
Processing precision within	10m+/-1.00mm
Material of cutting blade	Cr12 quenched

Packaging & Shipping
Packing method:Bare covered, with waterproof cloth and stow-wood.
Imported computer control system packed with waterproof cloth and card
board.
Sales term:30% deposit by T/T, and the rest 70% should be balanced by
T/T before loading into container and delivery.
After Sales Service
This producing line is maintained free of charge
for 18 months. When the machine is used in China, we will install and debug
the machine for free; if it is used at abroad, we will send the professional
technician to debug. Buyers should take all the fees for technicians traveling
abroad.
Certifications
Company Profile
Botou Xinbo Machine Making Co., Ltd, is a manufacturer of roof/wall panel roll forming machine, C/Z interchange purlin machine, decking floor machine, EPS/rock wool sandwich panel machine, shutter door and door frame machine, and building machine products with well-equipped testing and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building industry, living and another industry. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationship and mutual success!

FAQ
Q1.How about your price?
A:Although we are brand name products,but our prices are very favorable and competitive.?Customer from all over the world to purchase our products, because our best price.
Q2: What's your payment?
A: Our Payment could be
(1) 100% T/T
(2) 30% in advance, others before shipment.
(3)Advance, others letter of credit.
Q3.Could you special design and produce for you?
A: Sure, we have all kinds of professional engineers,
Could design and produce special product according to customer requested. Such as: special Size, special control, or OEM, etc.
Q4.Do you looking for Agent?
A: Yes, we're looking for the agent all over the world, please contact us for further discussion.
