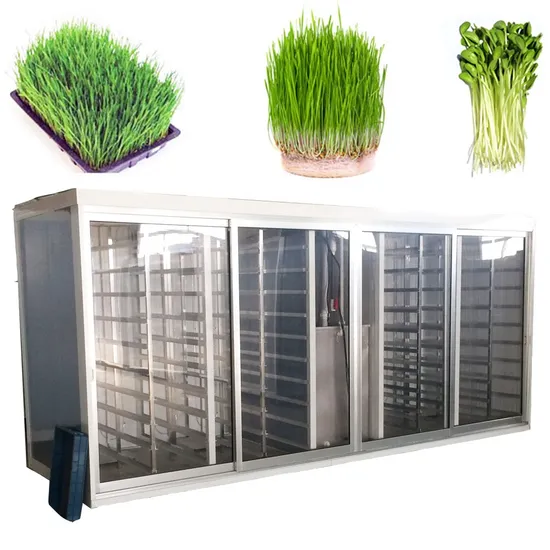

Hydroponic Rabbit Sheep Horse Grass Growing Sprouting Machine

Product Description

Product Overview

Structural features of sprout barley fodder growing machine:
★ Galvanized steel frame structure, the box body is a composite color steel plate with heat preservation, waterproof and rust prevention, and the internal frame is stainless steel; ★ Independent electric panel (computer) can realize: water shortage alarm, automatic water filling; ★ Cabinet: temperature display, high temperature alarm, cabinet automatic heating, constant temperature, cabinet air circulation; ★ Water tank: temperature display, high temperature alarm, automatic water tank filling, automatic heating, constant temperature automatic spraying, spraying interval time display, spraying delay display, manual spraying.

FEATURES AT A GLANCE

Advantage of sprout barley fodder growing machine :
· Automatic water spraying and humidification in regular cycle; · Fixed circulation ozone disinfection; · High temperature automatic water spraying to cool down; · Automatic constant temperature in the cultivation room; · Automatic protection and alarm for water shortage and power failure.

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

Barley fodder sprout machine technology:
1. The production cycle is shorter than traditional manual production and the quality is better Generally, the growth cycle of sprouts takes 4-5 days in summer and 7-9 days in winter. The sprout machine can be harvested in 3-3.5 days, and it is not affected by weather conditions and seasons. The sprouts produced by our company's sprout machine grow uniformly and uniformly in an artificially controlled, constant temperature environment, which overcomes the unevenness of natural growth. 2. Reduce bud rot phenomenon Rotten buds of sprout growth usually occur about three days after cultivation. Due to the long manual production cycle, the phenomenon of sprouts is prone to appear. However, the sprout machine is used for production, which has matured in about three days and can be harvested and eaten. Rotten buds occurred. 3. Labor saving and convenient operation Put the soaked seeds into the germination box of the sprout machine and you don't need to worry about it. It will automatically heat up and spray water, and it will be harvested after 3-3.5 days.

Model	WSYJ-50M	WSYJ-100M	WSYJ-200M	WS-YJ-500M	WS-YJ-1000M
Voltage	220v/110v/380v
Power	1.5kw	2kw	2.5kw	3.5kw	4.5kw
Daily Capacity	25kg/day	50kg\day	100kg\day	250kg\day	500kg\day
Trays	16pcs	32pcs	64pcs	160pcs	320pcs
Daily Water consumption	0.5m3/day	1m3/day	2m3/day	2.8m3/day	3.2m3/day
Weight	140 kg	290kg	380kg	680kg	1260kg

Details Images

Microcomputer controller: 1. Realize the split control of multiple boxes, and two kinds of bean sprouts can be made at the same time. 2. The temperature inside the box is displayed, high temperature alarm, automatic heating, air circulation in the constant temperature box, and automatic water tank filling. 3. Constant temperature automatic spraying, high temperature forced spraying, spraying interval time display, spraying delay display, manual spraying, automatic alarm protection for water shortage. 4. Parameter power failure memory function, accidental leakage protection function, safe and reliable.
Manufacturing Technique

Customer Photos
