3 layer cold and hot laminating machine

Product Description

Product Description

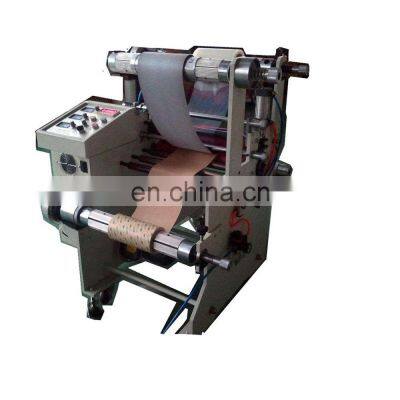

3 layer cold and hot laminating machine
automatic label adhesive material laminating machine that can laminate 3 layers
Functions:
1. This machine is applicable to stick the narrow scope paper
2. It automatically count meter, set length, stop and alarm, unwind
3. Tension is controlled by magnetic clutch,
4. High precision, high speed, easy to operate
Application: Laminating and sticking for materials with base glue and other materials.
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines.

Pictures	Description	model	max web width (mm)	winding diameter (mm)
	roll to roll laminating machine, is applicable to sitck the narrow scope paper , IT can automatically count , set length , stop and alarm ,Complex for adhesive tape such electric label industry as mobile phone,computer and etc .	DP-420	420	500
speed (m/min)	accuracy (mm)	main motor power (kw)	total power (kw)	Payment term
60	±0.3	0.75	1.5	100% TT advanced
wooden case packing measurement	Gross weight	delivery time
1.4X1.2X1.3M	600KGS	10 days after advance payment received

Ⅱ,Feeding Device
Feeding Air Expansion Shaft(3″Pad Shaft) 3 Sets
Magnetic Power brake 12 1 Set
Release of membrane magnetic power brake 12N 3 Sets
Feeding tension control system 3 Sets
Ⅲ,Renewal Material of Laminating
Upper Laminating roller dia 80(PU ) 1 Set
Underneath laminating roller Dia 80 (PU) 1 Set
Al guide roller (hard oxygen surface treatment) 1 Set
Pneumatic pressure roller can be adjusted up or down. 1Set
Electronic counter 1 Set
Release of membrane tension adjustment system 1 Set
IV, Reeling End
Rewinding air expansion shaft(3″Pad shaft)) 1 Set
Magnetic Power brake 25N 1Set
The rewinding tension control system 2 Sets
Main Power 1 Set
Main Power Transducer 1 Set
Rewinding shaft air drive upper and underneath drive(increase, descend, hold) 1Set
V. Switchboard Control Box 1 Set
VI,Electric Control Panel 1 Set
VII,Advantages
This machine has a frequency control system, which is easier to operate, and more accurate.
It also has a electronic counter with the metering function can control the length and automatically stop the machine when the material is cut off.
