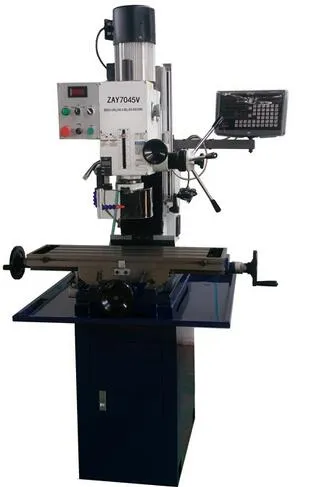

Vertical Milling and Drilling Machine ZAY7045V with Variable speed
| US$1,600.00 | 1 set (MOQ) |
Basic Info.
Model NO.
ZAY7045V/1
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
Table Size
800X240mm
Drilling Capacity
45mm
Spindle Travel
130mm
Spindle Taper
Mt4/R8
Motor Power
1.5kw
Transport Package
Standard Plywood Package
Specification
CE
Trademark
WMTCNC
Origin
Anhui
HS Code
84592900
Production Capacity
50 Sets/ Month
Product Description
Product Description
Feature
Milling and drilling machine
Variable speed type
Gear head and square column
| Model | ZAY7032V | ZAY7040V | ZAY7045V |
| Max drilling capacity | 32mm | 40mm | 45mm |
| Max Face mill capacity | Φ63mm | Φ80mm | Φ80mm |
| Max End mill capacity | Φ20mm | Φ32mm | Φ32mm |
| Max distance from spindle nose to table | 400mm | 450mm | |
| Min distance from spindle axis to column | 260mm | ||
| Spindle travel | 130mm | ||
| Spindle taper | MT3 , MT4 or R8 | ||
| Range of spindle speed | 100-530rpm 530-2600rpm | ||
| Swivel angle of headstock (perpendicular) | ±90° | ||
| Table size | 800×240mm | ||
| Forward and backward travel of table | 175mm | ||
| Left and right travel of table | 500mm | ||
| Motor Power | 1.1KW/1.1KW/1.5KW | ||
| Net/Gross weight | 300kgs/ 350kgs | ||
| Packing size | 770×880×1160mm | ||
| Loading amount/20" container | 36pcs | ||
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
:Satandard accessories:
Tie rob
Wedge
Allen wrenches
Double -end wrench
Drill chuck and arbor
Tool box with tools
Optional accessories:
CE electrical part and production
Work lamp
Milling chuck
Boring bar
Milling cutter holder
Power feed attachment
Cooling system
Machine stand with oil tray
