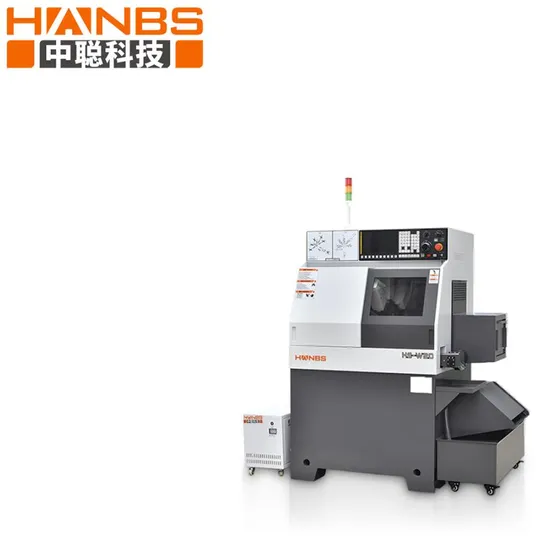

Hanbs HS-W20 Processed Stainless Steel Parts by Swiss Type CNC Lathe

Product Description

Hanbs HS-W20 Processed Stainless Steel Parts by Swiss Type CNC Lathe


Product Description

Strong adaptability
Strong adaptability to processing objects and the characteristics of single piece production of products such as molds provide suitable processing methods for mold manufacturing.
Stable processing quality
High machining accuracy, capable of using five types of cutting tools simultaneously to process products, with stable machining quality.
High flexibility
Cnc lathe can perform multi coordinate linkage and process complex shaped parts.
Time and effort saving
When changing the machining parts, it is generally only necessary to change the CNC program, which can save production preparation time and does not require too much manual intervention.
High production efficiency
The machine tool itself has high precision and rigidity, and can choose favorable processing quantities, resulting in high productivity.
Product Photoes
Spindle type 12 on the back, machining with spindle end drilling
1kw servo axis on the back for powerful drilling
Fuel tank and feeder are on the side of the machine.
Product Information

control system	HANBS self-innovate (yn 1.0 versions)
Servo axis number	Standard 12 axis
Programming method	5-channels G code programming, each axis can be programmed separately
The number of knives	Group 5
Maximum machining diameter	Φ15mm Φ20mm
Maximum machining length(50mm in guide mode)	The walking knife mode is 50mm
Maximum axial bore diameter (When the back shaft is 12mm and the handle is 10mm)	Φ6mm
Drilling arm handle diameter	∅5(Three)∅6(Two)
Attack capability (spindle reversal mode)	M6 Copper
Dental tapping ability (doraxial delivery)	M5 Copper
Car thread function	Yes
Multi-knife synchronous processing function	Yes
Radial max bore diameter	Φ7mm
Radial max bore tapping size	M5
Maximum clamping diameter of the back side spindle	∅12mm
Maximum bore diameter of the back-side spindle	∅6mm
Maximum tapping diameter of the back-side spindle	M6
Spindle power	2KW(With the function of score)
Backside platform axle power	1.0KW
Maximum spindle speed(For short use only)6000rpm	6000rpm
Back maximum speed (for short use only)	6000rpm
Maximum removal length of piece	50mm
Side power tool unit (optional)	2
End face power tool unit (optional)	1
Row knife ( 8 * 120 * 3))	3
Standard maximum number of tool installed (5 knives + 5 drill / boring)	10
High maximum number of tool installed (5 + 5 drilling / boring + 1 back strong drill)	11
Knife size	8*8
Z1.2.3.4.5 axial stroke	50mm
X1.2.3.4.5 axial stroke	30mm
Backshaft itinerary	150mm
X1.2.3.4.5 axial power	400W
Z1.2.3.4.5 axial power	400W
Z1, Z2, Z3, Z4, Z5, and Z2 axis fast-forward speed	30m/min
X1, X2, X3, X4, X5 axis fast forward speed	30m/min
Center height of spindle	1010mm
High version input power	7.6KW
weight	1800Kg
Fuel tank storage	50L
size	1550*1060*1650mm

Installing parts

Packing and Shipping
Samples Display

Factory
Certifications
F&Q
1. Q:Do you accept OEM/ODM?
A:Yes, both kinds are available.
2.Q:How long has your company been operating Swiss type cnc lathe?
A: 13 years
3. Q: How many machines can be produced in a month?
A: 60sets/Month
4. Q: Product features and performance:
A:swiss -type cnc lathe is is a machine tool designed for high precision and complex parts machining with flexibility and customization.
5. Q:Quality and reliability:
A:Our products have one year warranty after sale, if your company does not have personnel who can be technical, we can provide technical training.
6. Q:Payment terms:
A:T/T, L/C , D/P etc.
7. Q:Installation and configuration:
A:We provide installation service, if you have any other requirements need to talk to us in advance, we will make corrections according to your requirements. All of our products have optional functions, if you need, you need to contact us in advance.
8.Q:Operation panel compatibility:
A:We can allow the installation of other language systems, but need your company to provide the appropriate description, we will install it for you.
9. Q:Security and Compliance:
A:Our products are ISO9001 certified and GE certified, if you need other certification information, you need to consult with us in advance.
10. Q:Transportation method:
A:By sea/overland
