Precision Vertical Arm Radial Drilling Machine with Ce (Z3080)

Product Description

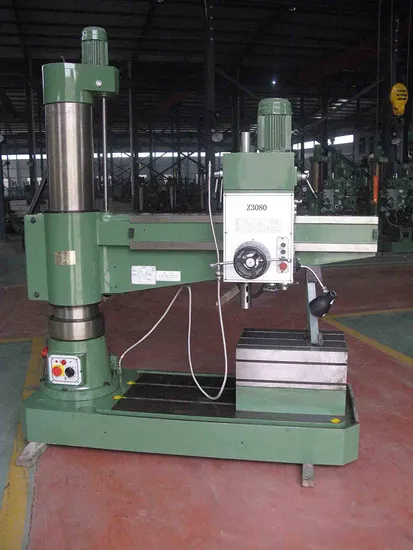

Precision Vertical Arm Radial Drilling Machine with CE (Z3080)
Application:
Z3080X20 hydraulic radial drilling machine is a large hydraulic drilling equipment. It has high working efficiency and small machining error. The maximum drilling diameter is 80mm. It can drill, ream, ream, lie and tap on large and medium-sized parts. Work, can be boring under the conditions of the corresponding tooling, Z3080 radial drilling machine is flexible and simple, it is an ideal drilling equipment for large equipment processing, manufacturing and maintenance industries.
Feature:
Z3080 radial drill structure features: mainly consists of the base, the inner column, the outer column, the radial arm, the headstock and the workbench.
1. The main key parts are high-strength cast iron and special steel.
2. Continuous processing by specialized equipment to ensure excellent basic components.
3. The hydraulic pre-selection shifting mechanism can save auxiliary time.
4, the spindle is reversed, parking (brake), shifting, neutral, etc., controlled by a handle, the operation is lighter and faster.
5. The spindle box, rocker arm and inner and outer columns are hydraulically driven diamond-shaped block clamping mechanism for reliable clamping.
6, 16 spindle speed and feed can be selected to cost-effective cutting.
7. The rocker guide rail, the outer cylindrical surface, the main shaft, the main shaft sleeve and the inner and outer column rotary raceways are quenched, which can maintain the stability of the machine tool for a long time and prolong the service life.
8. Perfect safety protection device and outer column protection.
9. In the structural design and in the manufacturing process, effective measures have been taken to make the durability of the machine tool and the service life of the machine both extended and extended.

Radial Drilling Machine Specification:

SPECIFICATIONS	Z3080X20	Z3080X25
Max. drilling dia(mm)	80	80
Distance from spindle nose to table surface(mm)	350-1585	330-1585
Spindle center to column generating distance	500-2070	500-2570
Spindle travel (mm)	400	400
Spindle Cone	6	6
Range of spindle speeds(r.p.m)	16-1250	16-1250
Spindle speed series	16	16
Spinde feeding range(r.p.m)	0.04 -3.2	0.04 -3.2
Spinde feeding step	16	16
Rocker rotary angle	±90°	±90°
Main motor power (kw)	7.5	7.5
Movements motor power(kw)	1.5	1.5
Machine weight	7000	9500
Overall dimensions(mm)	2980x1250x3300	3500x1450x3300

Machine Detail Image:
1,We can guarantee delivery on time
2,Package: Machines and accessories are fixed in wooden boxes, then spray anti-ust-oil, hang up the desicant, ensure the safety of the machine in the long time shipping
3,Export Case: wooden case with Tito, Second, Fumigation wooden case
Our Company:
Shandong Woda heavy machinery Co.,LTD is located in Tengzhou city, Shandong Province,China. We specialized in
manufacturing & exporting machine tools for many years.Our product range is Hydraulic press machines, Shearing Machines, Bending
Machines, CNC machines, Lathes, Milling machines, Drilling Milling Machines, Metal band saws, Shapers,
Slotting Machines and Radial Drilling Machine.
These years we won high praise from customers at home and abroad, because of our high quality products, professional service and
most competitive price.With the advanced production facility, strong technical ability and professional production capability, we're sure
that we can supply you the qualified products with high quality and best design.We have a convenient transportation, Beijing /
Shanghai / Xuzhou / Jinan airport is very close to us. The Tengzhou high-speed train station saves you time. We will arrange reasonable
routes for you, welcome to visit our factories.
Our Service:
1,Our quality Warranty time is 12 months
2,We can Provide Technical support online service and Machine operation Vedio
3,We can provide on-site training and commissioning Vedio
4,We can Provide Spare parts replacement and repair service
All of the questions will be replied within 24 hours
