Agricultural Machinery Farming Harvesting Machine Working Width 5400 mm Combine Harvester for Wheat Soybean Sale

Product Description

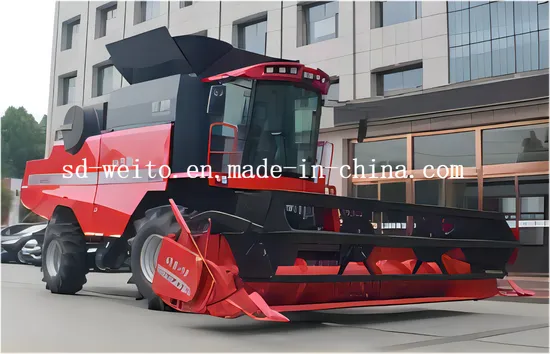

Agricultural Machinery Reaper Binder 4LZ-13 Wheat /soybean Combine Harvester

No.	Item	Unit	Design value
1	Model	/	4LZ-13 self-propelled cereal combine harvester
2	Type	/	Wheel self-propelled full feeding
3	Engine	/	Yuchai
4	Engine Model	/	YCA07P260-T400 (G4)
5	Engine type	/	In-line, water-cooled, direct injection, four- stroke
6	Engine cylinders	/	6
7	Engine power	kW	191
8	Engine Rotate Speed	r/min	2200
9	Dimension (L×W× H)	mm	9450×5800×3850
10	Total weight	kg	12500
11	Cutting width(wheat)	mm	5400
12	Cutting width(Corn)	Rows	6
13	line spacing (Corn)	mm	650
14	Min Ground Clearance	mm	430
15	Cutter type	/	GB2
16	Feeding	kg/s	13
17	Working gear	/
18	Working speed	km/h	1.5-6.0
19	Working productivity	hm2/h	0.6-1.5
20	Fuel consumption	kg/hm2	≤35
21	Header Cross auger Type	/	Screw push type
22	Reel type	/	Spring tine
23	Reel Diameter	mm	Φ1130
24	Reel Bat	/	6
25	Threshing mechanism	/	longitudianl axial flow
26	No. of threshing drums	/	1
27	Threshing drum type	/	Longitudinal axial flow Rod tooth

28	Threshing drum size(OD×L)	mm	Φ610×2995
29	Concave screen type	/	Grid style
30	Repeat threshing method		Return to the drum reshreshing
31	Fan type	/	cross flow fan
32	Fan diameter	mm	Φ296
33	No.of fan	/	1
34	Drive model	/	4×4
35	Brake System(F/R)	/	F:Disc
36	Transmission mechanism type	/	Mechanical gear box + HST
37	Drive axle type(F/R)	/	F:Mechanical+ Hydraulic/ R:Mechanical
38	Guide tire specifications	/	19.5L-24
39	Driving tire specifications	/	28L-26
40	Guide wheel tread	mm	2638
41	Drive wheel tread	mm	2600
42	Wheel base	mm	3305
43	Cabin type	/	Air-conditioned cab
44	Stalk chopper type	/	Rotary blade type
45	Grain tank	m³	7.5
46	Unloading type	/	Mechanical auto discharge
47	Unloading tube	mm	4500

Product Description

Production Introduction of harvester

1.strong threshing power

2.convenient maintenance

3.reasonable design structure

4.Self-propelled wheel type grain combine harvester

5.can harvest wheat ,rice,soybeans,rapeseed,corn kernel

Main Featuer of harvester

1.	Double-layered stepwise sieve for better cleaning , no grass,no chaff.
2.	Adopt 200HP engine and new transmission components,powerful and durable.
3.	Widen elevator,smoothly feeding,faster speed and more efficiency.
4.	Improve the power output components,the transmission is reliable and good quality.
5.	Optional sealed front axle can be installed to make the traveling system more reliable.
6.	Adopt visual images system to monitor grain tank and reversing,convenient,clear and safety.

Advantages of harvester
1.The header can be equipped with a quick-hook header, which is more convenient to connect the header and can be completed independently.
2.An anti-wrapping device is added on the right side of the reel, which greatly reduces the maintenance time of the product during the operation and improves the operation efficiency.
3.The engine power is increased to 200 horsepower and a multi-function switch is added. The horsepower can be varied between 125 and 200 horsepower to meet more needs of users; the power output pulley is changed from Φ248 to Φ272, and the walking speed is increased by 10%, and the work efficiency is higher.
4.The power output belts, walking belts, and threshing drum belts all adopt red label belts, which can increase the service life, reduce the replacement cycle, and improve the work efficiency.
5. The key parts such as the intermediate shaft, drum shaft, fan, and active and passive shafts of the bridge adopt Piler maintenance-free bearings to reduce user maintenance time and increase work efficiency.
6. The repeater adopts a disc-type repeater, equipped with impellers for harvesting rice and soybean repeater, which realizes multiple functions in one machine and creates higher profits for users.
7 Adopt a new type of arc cab, a new front face of the cab, increase the space of the cab, the cab is dust-proof, noise-proof and sealed, improve the quality of the cab seat, and improve driving comfort.
8. The use of a new type of control box, optional electronically controlled one-rod control, the electronically controlled control device integrates the lifting of the header, the lifting of the reel, the stepless speed change, and the electro-hydraulic assisted shifting in one, making driving easier and more comfortable Higher.
High Producity

1.Powerful engine

2.Modified gearbox

3.Wider conveyor

4.Long threshing drum

5.Efficient harvesting

Product Detailes of harvester

Qty ' of Loading: Ro-Ro / FR
Qty' of Loading: 1 Sets/40'HQ
Loading into Container photos FOR 4LZ-9 /LZ-5
OUR CERTIFICATE
ISO 90001 &CE Approval .
8.our main products :
it includes walking tractor (power tiller)8-25hp ,wheeled tractor ,driven by single cylinder diesel engine 15-30HP;crawler tractor (40-110HP),Wheel tractor driven by multi-cylinder diesel engine (20
-240hp).can match kinds of farm implements .
9.kinds of farm implements and tools
10.Questions
1)how long is the warranty time ? it is 12 months since the date of B/L ;
2)how long is the delivery time ? it is about 20-30days normally since the date of 30% deposit.
3)what is the payment terms? the L/C at sight or Payment in Cash by T/T is acceptable .
4)what is the service life ?it is more than 8 years ,if the baler has a good maintanence as the manual .
5)how to order the baler? if you need it ,contact with our business manager who will take you a good solutions as your requirements .
6)how about the spare parts ? can get the spare parts from the local dealer or agent ,or directly order it from our factory .
