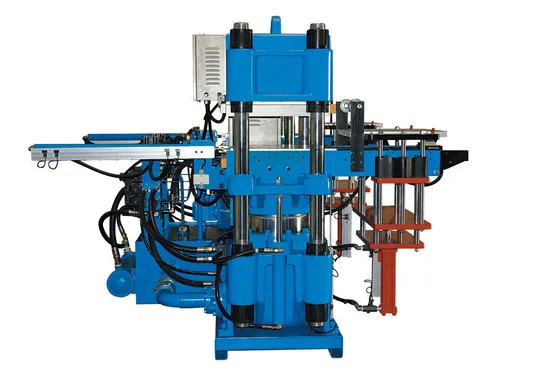

Rubber Silicone Hydraulic Molding Machine Plate Vulcanizing Press Oil Pressing Machine Rubber Making Machine

Product Description

200Ton Hign precision rubber vacuum machine, full automatic, fast speed, multi-layer open mould stylehydraulic molding machine. Machine main feature: 1. Adopt dual power individual circuit design, stable, quiet, low failure rate, two axes can be operated simultaneously, saving 50% 2. Front mold is suitable for variety 2-layers or multi-layers molds, it is a kind of new multi-function machine 3. Lift and clamping mold speed can be adjustable, accuracy and reliability 4. Out-In mold positioning accuracy, positioning 100% security, to ensure that mold does not damage 5. Vacuum chamber can reach 650-700mmHg within 5 seconds 6. Has a fast, slow correction mode selection function, so that the mold can be correction more accurate, more secure Applicable products: Applied to Auto parts, rubber fasteners, O-ring, silicon button, home application rubber, bottle stoppers, industrial rubber, silicon/rubber multi-layer molded products.
Parameter:

Model	100Ton	150Ton	200Ton	250Ton	300Ton	350Ton	400Ton	450Ton
Clamping force(Ton)	100	150	200	250	300	350	400	450
Stroke(mm)	250	250	250	250	300	300	300	300
Heating plate size(mm)	400x400	450x460	560x560	600x650	650x650	750x700	850x850	1000x1000
Main cylinder diameter(mm)	250	300	355	400	450	475	500	560
Horse power(HP)	5x2	5x2	10x2	10x2	10x2	15x2	15x2	15x2
Electrical power(KW)	12	17	22	34	34	43	48	72
Gross weight(KG)	4500	5500	7000	9000	11000	15000	17500	21500
Machine size(L*W*H mm)	2360x1650x1850	2650x2000x2000	2930x2350x2100	3200x2700x2500	3460x2630x2500	3650x2600x2610	3750x2700x2800	4200x3300x3300

Machine core parts:
Adopt foreign imported, such as Japan Mitsubishi PLC control system, Germany's Siemens control system, Taiwan PanelMaster HMI, Japan YUKEN oil pump, Taiwan heating pipes, Taiwan Victoria solenoid valves, Denmark TRAFAG pressure sensors, Japan NOK oil seal, Taiwan Tatung motors, Omron thermostat, Germany Busch vacuum pump, Fujitsu and other international brands accessories, stable quality, superior performance, low failure rate.
Dongguan City Kesheng Intelligent Equitment Techology Co., Ltd is located in Dongguan city, Guangdong, China, covers an area of 28000 square meters. Our company was established since 2003 and founded by a group of professional engineers who are well experience in rubber & silicone machinery manufacturing. To meet our customers' requirements, we have been adhering to design innovation, quality first and also provide custom made service.
Any inquiry please feel free to contact with us, thank you for your attantion!
