4color Automatic Carousel Tshirt Screen Printing Machine for Textile Screen Printer Tshirts Serigrafica Maquina

Product Description

Product Description

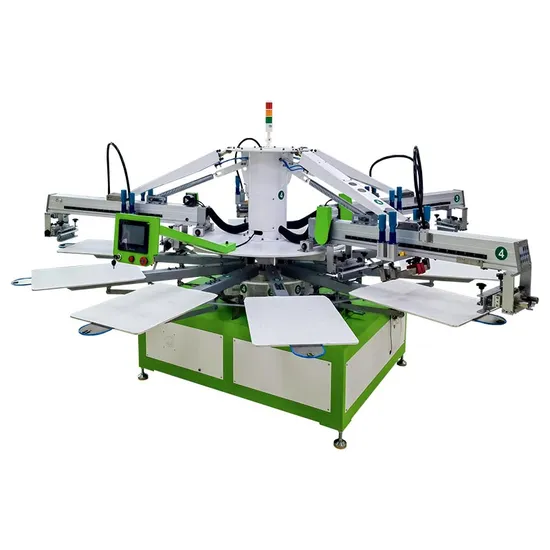

4Color Automatic Carousel Tshirt Screen Printing Machine For Textile Screen Printer Tshirts Serigrafica Maquina
What is this screen printing machine use for ? It is suitable for printing Tshirt, safety vest, clothes, neck label, garment tagless, paper bag, non-woven bag, canvas bag, tote bag, kraft bag, sleeve, jean pockets, underwear, insole, can cooler/koozies, textile, fabric, shoe pad, textile caps...and so on
Product Parameters

Max.print size	400*600mm
Max.screen frame size	550*800mm
Pallet size	500*700mm
Workstations	10 pcs
Air pressure	6-8 Bar
Voltage	220V Single phase
Electric power	3KW for 1 set flash dryer * 4
Dimension	3800*3800*1650mm
Weight	1200kg

Detailed Photos - Screen printing head driving by separately electric servo motor for each print head
- PLC program and touch screen control panel
- Machine comes with 4 sets flash dryers, 1 color 1 dryer
- Rotary worktable total 10 stations for 4color
- Each print head has separately control panel,screen plate has micro adjust device
- Workstation positioning by electric servo motor
Features 1. Printing head adjustable and set up by separately control panel
2. Flash dryer temperature adjustable separately
3. Printing head drying by electric servo motor
4. Worktable Automatic positioning
5. PLC program and Touch Screen Control Panel
6. Micro adjust for chromatography printing precision
7. Every print head control panel separately adjustment
