Stable Edge Trimming and Cutting Saw

Product Description

Product Description
The Guide Rail Type Edge Trimming Saw is used to cut and trim the roughness of the four sides,
or adjust the size of the board, which is widely used in
plywood, woodworking, furniture manufacturing,
or other areas where high precision cutting is required.
It is equipped with a guide rail system that helps the saw follow a straight line or predetermined path for stable cutting.

USAGE
1. Woodworking and Furniture Manufacturing:
Especially suitable for cutting large-sized wood boards, such as plywood, particleboard, solid wood boards, etc.
2. Construction and Renovation:
Suitable for cutting floors, gypsum board and plastic board.
Working Principle:
The Guide Rail Type Edge Sawing Machine
typically consists of a guide rail with a locking system,
the saw is fixed on the guide rail and cuts materials along it.
The size and cutting method of the saw blade are similar to those of a traditional circular saw, but due to the guide rail,
the saw will not deviate from the predetermined cutting line.

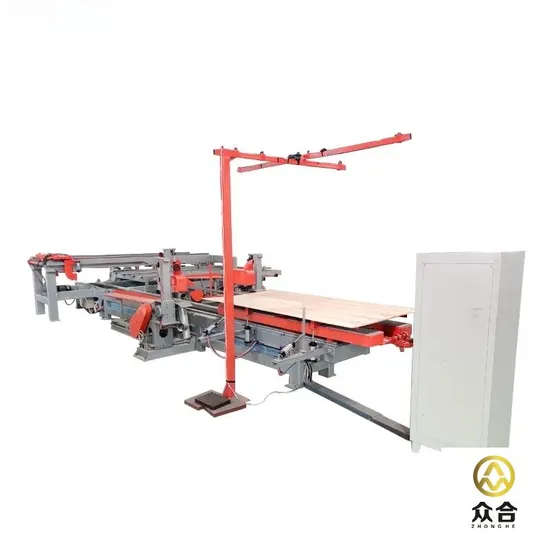

Machine Photos for Reference

Product Parameters

1	Model	BDDS-4*8
2	Main frame material	100 * 120 mm square steel tube
3	Cutting size	1220 * 2440 mm
4	Cutting thickness	maximum 60 mm
5	Diagonal tolerance	less than 1 mm
6	Straightness tolerance	less than 0.5 mm
7	Saw head	Casting, fine finishing
8	Bearings	NSK (Japan brand)
9	Voltage standard	380V, 50HZ
10	Pneumatic element	AKS
11	PLC brand	SIMENS
12	Touch screen displayer	SIMENS
13	Main elctrical parts	CHINT
14	Inverter	DELTA
15	Feeding speed	0 - 30 m / min, (adjustable)
16	Saw blade speed	6800 turns / min
17	Electrical control panel	dust-free and powder painting
18	Total Motor power 40.4 KW	main saw blade head 7.5 KW, 4 pieces
		small saw blade head 1. 1KW, 4 pieces
		lift table motor 3 KW, 1 piece
		working table motor 1.5 KW, 2 pieces
19	The first saw guide rail	30 mm diameter, Six arrises guide
20	The second saw guide rail	30 mm diameter, cylindrical guide
21	Saw blade	4 big saw blade, 4 small saw blade (Germany BAK)
22	Gross weight	4800 KG (It needs 1*40HC container to load)

Machine Features
1. Guide rail system:
The saw moves along the guide rail, ensuring a straight and precise cutting line,
avoiding any possible deviation in manual operation.
2. High efficiency:
Workers can superimpose multiple layers of boards on the machine to process them at the same time
3. Precise cutting:
The guide rail ensures that the saw cuts along the predetermined path, which is very important for jobs that require high precision, especially for straight cutting of wood boards, plywood or other panels.
4. Adjustable cutting depth:
It allows users to adjust the cutting depth, suitable for materials of different thicknesses.
5. Clean and accurate cutting edges:
Using the guide rail system can ensure a smooth and flat cutting edge, reducing the subsequent trimming.
6. Easy operation: Users do not need to control the cutting direction too much.
7. Reducing cutting errors:
The guide rail limits the movement of the saw, reducing the problem of inaccurate cutting due to operator error.
