Product Description

Perforate toilet paper rewinding machine price
Model: CIL-SP-B
Machine video:
https://youtu.be/TOzyJ98I2nc high speed toilet paper machine cutting line
https://youtu.be/C4qnC6uGmFA toilet paper rewinding machine.
https://youtu.be/BGVVcuPvuz8 Automatic production line

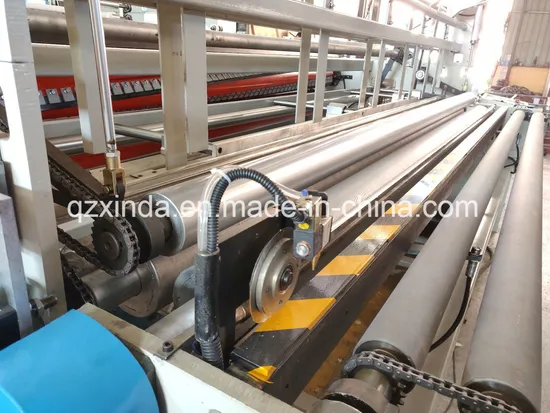

CIL-SP-B this equipment is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension.
It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 15 m². The highest production speed is 150-200m/min. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory.

Model	1092B	1575B	2000B	2200B	2400B	2600B	2800B	3000B
Width of raw material(mm)	1200	1750	1950	2150	2350	2550	2750	2950

Embossing units: Single or double embossing units ,steel to rubber ,full emboss or edge emboss.
Perforating Units: 4 knives :the distance is 90-120mm; 2 knives: the distance is 180-240mm
Speed: 150-200m/min 200-250m/min(slab-wall structure)
Pneumatical System: Air Compressor, minimum pressure 5kg/cm2pa(offered by customers)
Power: 4kw-10kw (380V/220 50Hz 3P) Other local voltage should be point out
CIL-SP-B product feature
1. PLC (computer) control production, degree of full-automatic of production process is high, the function of machine is complete, and production efficiency is high.
2. Load and change the core, spray glue, seal can be done without stop the machine. When changing the core, the machine will low the speed and up the speed automatically.
3. When change the core to rewind, it will be tight first and then loose, to avoid the core loose.
4. Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes.
5. When raw material broken, the machine will stop automatically.
6. Each raw material unreel separately , equip with tension control.
7. Easy to adjust in order to suitable different paper core.
8. There is tail after the finished product sealed with glue , easy to use.
9. There is pneumatic jack to load the raw material on machine. After sell service: 1,One year maintenance service.Any damage spare part can be exchanged from our company directly(excluding the easy damaged goods).
2, After one year, we will continue to assist you both on technical problem and the quality level for long-term.
3, The easy damaged goods will be along with the machine.
4. We offer the DVD for machine operation and install, the DVD and all manual shipped together with the machines.
5. We welcome you to offer us the paper sample, we can design the machine in OEM.
