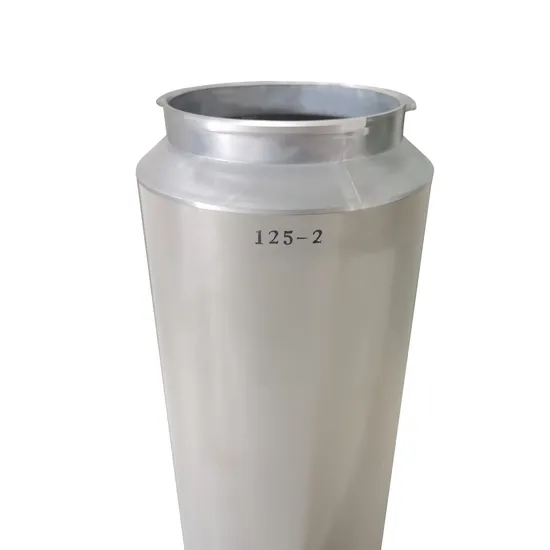

Special Rotary Nickel Screen for Wallpaper Printing Textile Rotary Printing Nickel Screen Textile Machinery Parts
| US$50.00 | 20 Pieces (MOQ) |
Basic Info.
Model NO.
Wallpaper screen
Processing Type
Mechanical Process
Match Machine
Printing and Dyeing Equipment
Material
Nickel
Certification
Intertek
Customized
Customized
Condition
New
After-sales Service
1 Year
Thickness
150 Micron
Screen Repeat
640 mm,914 mm
Mesh Count
80sp Mesh
Open Area
20.0 %
Length
1410 mm to 3500 mm
Transport Package
Export Carton, Export Wooden Case
Specification
640 mm, 914 mm
Trademark
Enyang
Origin
China
Production Capacity
10000 PCS Per Month
Product Description
Enyang provide Rotary Nickel Screen mesh ranges as follow: Mesh Count:25,30,40,50,60,70,80,100,125,135,155,165,up to 195 mesh count. Screen Repeat:640,688,725,819/820,914,1018,1206,1450,1680mm Length:1000 mm to 3500 mm. which are of high quality and can replace the similar products as well from Europe. All other specifications could be customized.| Standard Nickel Screen | |||
| Repeat(mm) | 530/640/688/725/819/914/1018 | ||
| Length(mm) | 1410-3500 | ||
| MESH COUNT | THICKNESS(um) | OPEN AREA(%) | DIAMETER(um) |
| 25 | 160-165 | 30-32 | 720 |
| 40 | 145-150 | 28-30 | 318 |
| 60 | 115-120 | 18-20 | 161 |
| 70 | 110-115 | 16-18 | 131 |
| 80 | 110-155 | 16-18 | 105 |
| 100 | 105-115 | 15-17 | 74 |
| 105 | 105-115 | 15-17 | 94 |
| 125 | 100-105 | 14-16 | 79 |
| 125V | 100-105 | 14-16 | 79 |
| 135 | 100-105 | 13-15 | 72 |
| 135V | 100-105 | 13-15 | 72 |
| 155 | 100-105 | 12-13 | 60 |
| 165 | 100-105 | 12-13 | 71 |
| All"V type screen, the hole arrangement angle is 45°C, especially suitable for geometry printing, eg-square and line, all screen can be repeatedly used for 5-7 times. | |||
| Wax Special Screen | |||
| Repeat(mm) | 819/914 | ||
| Length(mm) | 1410-3500 | ||
| Mesh Count | Thickness(um) | Open area(%) | * |
| 60 | 145 | 24-26 | * |
| 80 | 120 | 18-20 | * |
| 100 | 125 | 15-17 | * |
| 125 | 120-180 | 15-25 | * |
| 155 | 120-150 | 15-22 | * |
| 165 | 120-150 | 15-20 | * |
| Wallpapers Screen | ||
| Repeat(mm) | 640/914 | |
| Length(mm) | 1410-3500 | |
| Mesh Count | Thickness(um) | Open area(%) |
| 40LR | 125 | 20 |
| 6OLR | 125 | 10.5 |
| 7OLR | 125 | 12.5 |
| 25SP | 150 | 50 |
| 40SP | 150 | 38 |
| 80SP | 150 | 25 |
| 100SP | 150 | 20 |
| 125SP | 150 | 15 ABOVE |
| 40CH | 150 | 22 |
| 40CH | 200 | 38 |
| 50CH | 200 | 20 |
| 50CH | 200 | 23 |
| 30HX | 300 | 30 ABOVE |
| 40HX | 300 | 30 |
| 60HX | 160 | 10 |
| SP Screen: Big open area and relatively less hole, especially suitable for decoration coating, dot printing CH Screen: Suitable for medium or thicker printing LR Screen: Closed drawing coating, light coating, artificial leather, wall paper and floor | ||
| GD Screen | |||
| Repeat(mm) | 640 | ||
| Length(mm) | 1410-3500 | ||
| Mesh Count | Thickness(um) | Open area(%) | Diameter(um) |
| 135ED | 120 | 22 | 88 |
| 165ED(45°) | 115 | 19 | 67 |
| 165ED(60°) | 115 | 19 | 67 |
| 195ED | 115 | 16 | 52 |
| 195ED | 115 | 19 | 54 |
| 215ED | 110 | 15 | 46 |
| High Open Area Screen | |||
| Repeat(mm) | 640/819/914/1018 | ||
| Length(mm) | 1410-3500 | ||
| Mesh Count | Thickness(um) | Open area(%) | Diameter(um) |
| 125HO | 115-120 | 17-18 | / |
| 155HO | 105-110 | 13-14 | / |
Product advantage: More tough and tensile, safely operation and multiple use Good symmetrical, good conglutination function of photosensitive medicament Orderliness and accurate screen caves, good dye output and osmotic function Higher strength, longer life screen Nickel screen for screen printing machine Packaging Detail:packaged in plywood case or carton box Delivery Detail:Within 10-15 days
