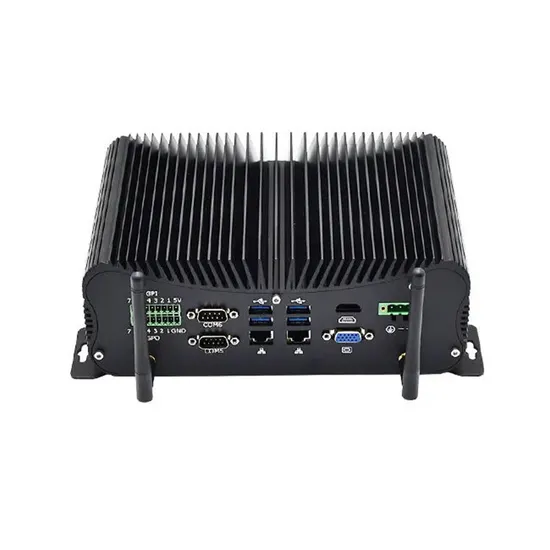

Aluminum Embedded Computer Core I5-1135g7 Fanless Mini PC

Product Description

Experience unparalleled performance with the 6COM GPIO Aluminum Core i5-1135G7 Embedded Computer. This fanless Industrial Mini PC promises robust reliability and seamless operations, ideal for demanding industrial environments.
Main Products
Feedback
Product Description
Standout Features:
Choose from Optional Intel 4th/5/6/7/8/10th Gen Core i3/i5/i7 CPUs to meet your specific needs.
For Gen 4/5: Equipped with DDR3L SODIMM x1, supporting up to 8GB of memory.
For Gen 6/7/8/10/11/12: Features DDR4 SODIMM x2, accommodating up to 64GB of memory.
Includes 6 COM serial ports, with 4 providing RS485/RS442 support for versatile connectivity.
Equipped with 2x Intel i210/i211/i229 Gigabit LAN for superior network performance.
Advanced functionalities such as one-key restore, watchdog, and diskless boot for uninterrupted operations.
Enjoy silent and efficient operation with our low power fanless design.
Built to endure, with an industrial-grade working temperature range from -20ºC to 70ºC.
All essential connectors are conveniently on-board for easy access.

PC
CPU Optional	Intel® Core i5-4278U, 2 Cores, 4 Threads, Base 2.6GHz, Turbo 3.1GHz, Fanless
CPU Optional	Intel® Core i7-4578U, 2 Cores, 4 Threads, Base 3GHz, Turbo 3.5GHz, Fanless
CPU Optional	Intel® Core i3-6157U, 2 Cores, 4 Threads, Base 2.4GHz, Turbo 3.0GHz, Fanless
CPU Optional	Intel® Core i5-7287U/7267U, 2 Cores, 4 Threads, Base 2.3GHz, Turbo 3.6GHz, Fanless
CPU Optional	Intel® Core i7-7560U, 2 Cores, 4 Threads, Base 2.7GHz, Turbo 3.5GHz, Fanless
CPU Optional	Intel® Core i5-8260U, 4 Cores, 8 Threads, Base 2.6GHz, Turbo 4.2GHz, Fanless
CPU Optional	Intel® Core i7-8560/8569U, 4 Cores, 8 Threads, Base 2.8GHz, Turbo 4.7GHz, Fanless
CPU Optional	Intel® Core i5-10210U, 4 Cores, 8 Threads, Base 1.6GHz, Turbo 4.2GHz, Fanless
CPU Optional	Intel® Core i7-10610U, 6 Cores, 12 Threads, Base 1.1GHz, Turbo 4.7GHz, Fanless
CPU Optional	Intel® Core i5-1135G7, 4 Cores, 8 Threads, Base 2.4GHz, Turbo 4.2GHz, Fanless
CPU Optional	Intel® Core i5-1155G7, 4 Cores, 8 Threads, Base 2.4GHz, Turbo 4.4GHz, Fanless
CPU Optional	Intel® Core i7-1165G7/1185G7, 4 Cores, 8 Threads, Base 2.8GHz, Turbo 4.7GHz, Fanless
CPU Optional	Intel® Core i7-1195G7, 4 Cores, 8 Threads, Base 2.8GHz, Turbo 4.8GHz, Fanless
CPU Optional	Intel® Core i5-1235U/1245U, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 4.6 GHz, Fanless
CPU Optional	Intel® Core i7-1265U/1255U, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 5.0 GHz, Fanless
Memory	4gen/5gen 1xDDR3L SODIMM, Max 8G 6/7 gen 1xDDR4 SODIMM, Max 16G 8/10/11gen 2xDDR4 SODIMM, Max 64G 12gen 2xDDR5 SODIMM, Max 64G
Storage	1x MSATA 1x M.2 NVME 2280(6/7/8/10/11/12gen) 1x HDD/SSD
Display	1x HDMI, 1x VGA
Network	2 x GbE RJ45 Intel i211/i210//i229
I/O	4x USB3.0/3.2, 2x USB2.0, 6x DB9 COM(4 of them Suports RS485/RS422, 1x HDMI, 1x VGA, 1x PS2 (Keyboard and mouse in one), 14x GPIO(7 input, 7 output), 1x Power Button,1x Reset Button,1x Clear CMOS Button, 1x 3pin Power phoenix,Support: 9-36V DC, 1x 3.5mm Jack, 1x Mic in, 1x ATX/AT, 2x Antenna port, for WIFI/3G/4G, 2xLAN(GbE RJ45 Intel i211/i210/i229)
Expansion Slot	1x Mini-PCIe half card, support WIFI Bluetooth 1x Mini-PCIe full card (with SIM card holder), support 3G/4G module, WIFI Bluetooth 1x Expand IO, support LPC, USB, PCIE
Power Supply	DC 9-36V
Other
Temperature Range	Operating: -20 to 70°C, Storage: -30 to 80°C, surface air flow
Power Supply	DC 9-36V
Accessories	Power adapter, 2.5-inch *** bracket, Screws
Warranty	3 years warranty
