1-3 Ton Mini Crawler Excavator for Clean Energy and Construction

Product Description

Miniature Crawler Excavator
Product Description
Micro-crawler excavator is a kind of mechanical equipment specially designed for urban construction and small engineering. It has many advantages that make it play an important role in urban construction.
< The micro-crawler excavator has a small turning radius and is easy to operate in a narrow space.
<Its construction time is short, can quickly complete the task, improve the construction efficiency.
<At the same time, the equipment has little impact on the surrounding environment, is safe and reliable, and meets the requirements of urban construction.
<Crawler excavator has the advantages of compact and flexible, energy saving and environmental protection, safe and reliable, efficient operation, etc. It can provide strong support for urban construction and small projects, and is a trustworthy mechanical equipment.
Product Parameters

Model	W-10	W-18	W-20	W-25	W-26	W-30	W-35
Total Weight	1000kg	1460kg	2000kg	2100kg	2100kg	2850kg	2500kg
Bucket Capacity	0.025m³	0.04m³	0.075m³	0.07m³	0.07m³	0.075m³	0.075m³
Track Width	180mm	180mm	230mm	230mm	230mm	230mm	230mm
Track Length	1230mm	1230mm	1625mm	2000mm	2000mm	2000mm	2000mm
Minimum Ground Clearance	135mm	200mm	240mm	200mm	200mm	240mm	240mm
Engine Power	7kw	18.1/18.2kw	18.1kw	20kw	20kw	20kw	18.2kw
Overall Length (in transportation state)	-	3200mm	3670mm	3966mm	3966mm	4348mm	4348mm
Overall Width (in transportation state)	-	1100mm	1060mm	1350mm	1350mm	1350mm	1500mm
Overall Height (in transportation state)	-	2300mm	2280mm	2280mm	2280mm	2159mm	2159mm
Traveling Speed	2km/h	3.4km/h	3.4km/h	3.4km/h	3.4km/h	3.4km/h	3.4km/h
Boom Deflection (left)	45°	45°	45°	45°	45°	45°	45°
Boom Deflection (right)	55°	55°	55°	55°	55°	55°	55°
Pressure of Working Device Circuit	-	-	16Mpa	16Mpa	16Mpa	16Mpa	16Mpa
Pressure of Traveling Circuit	-	-	16Mpa	16Mpa	16Mpa	16Mpa	16Mpa
Pressure of Slewing Circuit	-	-	12Mpa	12Mpa	12Mpa	12Mpa	16Mpa
Track Type	Rubber

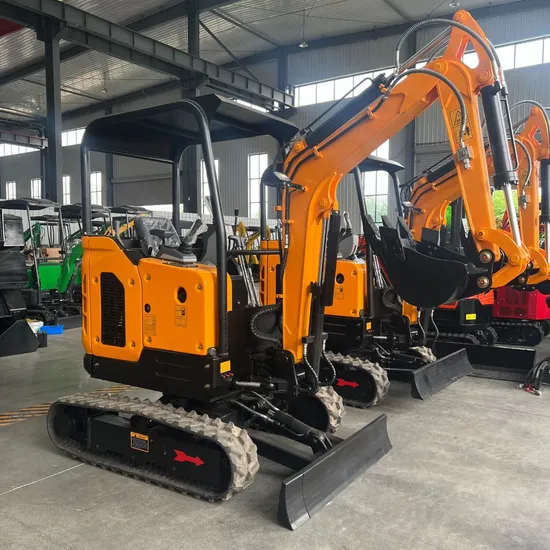

Detailed Photos

Our Advantages
Compact and Flexible: The 35 mini crawler excavator is small in size and moderate in weight, allowing it to operate freely in narrow spaces and small construction sites. It can maximize its production capacity in the narrow working spaces of cities.

Energy-saving and Environment-friendly: The construction machinery has little impact on the surrounding environment and low pollution, meeting the environmental protection requirements of urban construction.

Safe and Reliable: It has good stability and reliability, ensuring the safety of the construction process.

High Efficiency: The reasonable design of various parameters can improve work efficiency and contribute to saving manpower and material resources.
Reliable Power: Equipped with a Changchai 390 engine, it has stable performance and strong power, meeting the excavation needs in various working conditions.
Good Stability: The relatively wide tracks, high minimum ground clearance, and large counterweight ground clearance ensure the stability of the equipment in different terrains.
Wide Working Range: The large boom deflection angles, deep maximum digging depth, and high maximum digging height increase the working range of the equipment and improve work efficiency.
Suitable for Urban Construction: Small construction machinery has played a significant role in municipal engineering and transportation construction and has developed rapidly.
