Vacuum Couch Forward Drive Dany Rolls Banana Bow Breast Roll Paper Machine Roller
| US$2,000.00-7,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LZRR
Sheet Former Type
All Kinds of Paper Machine
Paper Thickness
All Kinds Paper Suitable
Automation
Automatic
Certification
CE
Customized
Customized
Condition
New
After-sales Service
Online and at Site Support
Delivery Term
EXW, Fob, CFR, CIF...
Payment Term
T/T, L/C, D/P, CAD...
Suitable Paper Machine Speed
80-2200m/Min
Shell Thickness
Customized
Transport Package
Standard Seaworthy Package
Specification
customized
Trademark
LEIZHAN
Origin
China
HS Code
843999
Production Capacity
50000sets/Year
Product Description

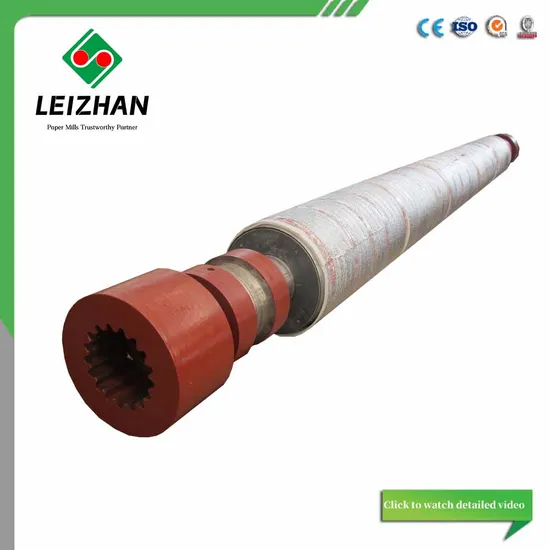

Product DescriptionPaper Machine Pope Reel Roll On a typical paper machine, the reel spools work with the winder drum to wind the paper at the end of the machine then allow for further converting of the paper on other pieces of equipment.
Our reel spool services are constantly focused on delivering greater performance, longer service life, better productivity, and greater cost efficiency for your business. Detailed Photos
| Dia | 460-1800mm |
| Face length | 2100-10000mm |
| Max. working speed | 2500m/min |
| Material | seamless steel pipe or reel pipe |
| Surface | covered with rubber, rubber thickness: 10mm |
| Shaft head | 45# round steel |
| Bulkhead | HT250 |
| Dynamic balance | G1.6 |
| Roller inside and outside surfaces will be processed | |
| We will do dynamic balance to improve the stability of the roller. After the shaft head is installed, we will do dynamic balance again. | |
Contact us for more paper machine roller series!!!
| Elements of Press roll: Shell, Journal, Bearing House, Bearing,etc | |
| Shell : | Cast Iron or Stainless Steel |
| Journal: | Cast Steel or nodular Cast Iron |
| coating: | Rubber or PU and Blind Drill |
| Bearing: | S K F or F A G, etc |
| bearing house: | Gray Cast Iron or Nodular Cast Iron or Spheroidal Graphite Cast Iron |
| Elements Of Vacuum Suction Press Roll : roll body, vacuum box(single or double chamber), bearing house on DS and TS, shower pipe, air tube, regulating valve, pneumatic tire, and seal strip. | |
