Plastic PE/PP/HDPE/LDPE/LLDPE/BOPP/PS/ABS/Pet/PVC/EPS/EPE/EPP/PC/Film/Bottle/Net/Non Woven/Bag/Fiber/ Recycling Line

Product Description

Product Description

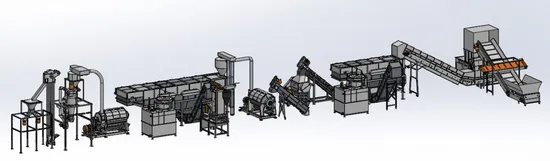

A PET bottle recycling line is a specialized facility designed to process and recycle water bottle,sprite bottle, cola bottle, juice bottle, pet sheet, PET packing container, PET strap,PET film and so on. This line turns dirty bales of PET bottles into clean PET flakes ready for usage in producing polyester staple fiber or further processing into plastic granules via pelletizing.



Working Process:

1:Move off the label through our label remover;
2:The hopper will collect the labels by the wind;
3:The bottle without labels will be sent to our granulator for shredding into flakes or small pieces.
4:Then these PET-crushed materials will go to the high-speed friction washer for washing.
5:There are two sink floating tanks to separate the sand or dirt, and the leftover plastic films from labels and PP/PE bottle caps will float on water too.
6:The dewatering machine uses centrifugal force to remove a portion of the water from the PET flakes and make the final moisture content less than 3%.
Detailed Photos
Granulator for shredding materials into flakes
Remove the sand and other impurities by high-speed rotation of the blade.

Rinsing the material and removing sinkable sand and metal.

1. washing materials by high-speed blade rotation;
2. Centrifugal discharge of water and contaminants through the screen.
