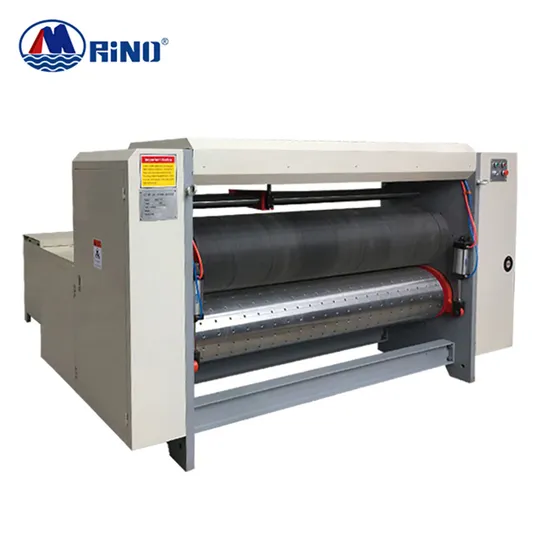

HD-Cr900 Carton Box Paperboard Rotary Die Cutting Machine

Product Description

Product Description

Model	HD-CR1200
Maximum paper feeding size(mm)	1200*2400
Minimum paper feeding size(mm)	350*650
Maximum die cutting size(mm)	1200*2400
Thickness of feeding paper	1-10mm(3-7 layer)
Power of main motor(kw)	7.5
Speed	60pcs/min
Wallboard thickness	50mm
Die cutting precision	±1.5mm

1. The manual chain-type paper feeding system is adopted, which can make the general curved cardboard pass smoothly.
2. The tension of the chain is adjusted manually. The worktable is a thickened , thickness is 5mm. 1. Die-cutting roller for the high quality centrifugal casting materials, balance correction, hard-chrome plating.
2. Wallboard for high-quality steel material, 50mm thickness , and large processing center production
3.Polyurethane rubber imported, easy of installation, could die cut 12,000,000 times,
4.Mechanical lateral movement is about 40 mm , decrease the pads wear .
5.Die-cutting roller cylinder automatic separation devices to increase Wear-resistant .
1.Paper receiving arm
[1]Manual or automatic operation can be selected.
[2]The paper-receiving arm drive belt can adjust the tightness independently without being restricted by the length of the belt.
2.Reducer lifting system
[1]Driven by powerful chains.
[2]The stacking height is 1600 mm.
[3]Reducer lifting system, the bed can be kept in a fixed position without sliding down. Features
1.Whole wallboard and important components are adopted aging treatment, eliminate the metal internal stress; Adopt high precision machining centers, CNC grinding machine for grinding processing.
2. The machine shaft, roller are adopted high quality steel, grinding processing, high precision computer dynamic balancing correction and surface hard chromium plating.
3. The engine drive gear is adopted 45# steel.
4. Machine transmission parts (shaft, gear joint) are adopted free key connection, the connection eliminate clearance. It is suitable for long-term high speed running with high torque.
5. The machine drive bearing, important driving parts adopt three domestic famous brands: Harbin,wafangdian,luoyang, simple maintenance, long service life.
6. The engine lubrication system is adopted automatic spray type lubrication.
7.Chain paper feeding mode, double side gear set position, ensure the accuracy of paper feeding.
8.Die-cutting roll 360 degree electric adjustment, digital display, and electronic counter.
9.Die-cutting rubber imported is easy to install and change, smooth edge of die-cutting tool, service life can reach 12 million times, greatly reducing production costs.
10. Die-cutting rubber roller adopts mechanical transverse moving device, about 40 mm, and controlled by pneumatic device. The tool mould moves up and down to prolong the service life of rubber .

Product application
Company Profile
Rino is a fast growing group company mainly committed to manufacturing and exporting high quality products with reasonable price to fulfill the needs of the most rigorous buyers. With the development of 20 years ,Rino Group already established flexo printing machine plant ,manual die cutting machine plant ,corrugated production line plant in Hebei province , carton packaging plant and trade department in Jinan Shandong province, Oversea branch in Chennai India.
Our company has nearly 20 years of experience in carton packaging production and professional technical team which can provide reasonable packaging solutions, after-sales service, timely and comprehensive for each customer. Aiming at offering the most suitable solution and professional service, Persisting in client requirement oriented, offering high quality, reasonable price and cordial service which have formed a unique service mode.
We sincerely expecting for cooperation with all global clients on the basis of Mutual-Trust, Mutual-Understanding, and Mutual-Benefit.
Certifications
exhibition
Packaging & Shipping
FAQ
1.Q:What is the machine warranty?
A:one year.
2.Q:Does your machine with CE certificate?
A:Yes, issued by Italian organization
3.Q:What is the production time while placing order?
A:About 40 days
4.Q:What is the delivery time?
A:45-60days after get the payment.
5.Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
6.Q:Does the packing strong?
A:Yes, all packages are double-checking before delivery
7.Q:How about after-sales service process?
A: We offer life time A.S.S. Please feel free to contact after-sales department.
8.Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
9.Q:Do you inspect machines before packing?
A:Of course we do.we have QC department to debug the machine before packing
10.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery.
11. Q: Do you accept factory visiting?
A:We are highly greeting for your visiting.
