Concrete Strength Testing Equipment/Strength Testing

Product Description

Product Description

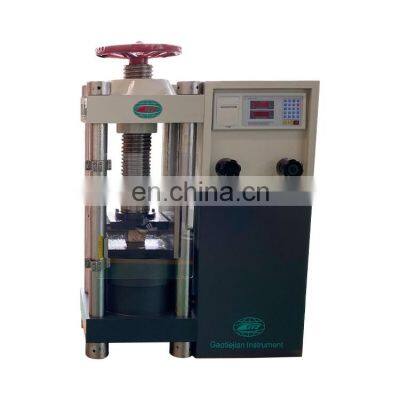

DYE-2000A digital compression testing machineProduct DescriptionThe series of testing machines are powdered by hydraulic pressure. Manual control technology is used to test the mechanical properties of rock, mortar, brick, concrete and other building materials. It shows the loading force, loading speed etc. Test data are automatically processed, stored and printed. This series of testing machine takes hydraulic pressure as power and manual loading to test the compressive mechanical properties of concrete, brick, stone and other building materials. It can display loading force value and loading speed value digitally. It can be configured with computer to display loading curve and carry out data collection and processing.ModelDYE-2000DYE-2000ANameCompression Testing MachineCompression Testing MachineMaximum test force (KN)20002000Test accuracyLevel 1Level 1Space adjustment methodPad adjustmentManual screw adjustmentPiston stroke8080Maximum distance between two pressure plates(mm)400400Sensor typeOil pressureOil pressureUpper platen size (mm)Ф225240x240Lower platen size (mm)Ф225350x260Motor powder (KW)0.750.75Mainframe dimensions(mm)900x400x1150985x400x1300Machine weight(kg)9209001.The machine adopts high precision sensor and digital display.2.The machine can store, consult and print the experimental results, and it can work without debugging.Detailed ImagesAdvantages1.The oil source control part adopts Siemens motor and high precision digital valve.2.The space adjustment mechanism adopts the Kawashima reducer with low noise.3.Using semi-closed hydraulic jaws, high strength.4. Vertical control cabinet, touch industrial computer, convenient and practical, saving space.5. The test adopts the microcomputer automatic control mode, which has the functions of stress rate, strain rate and stress retention and strain retention.6. Host four-column double screw test space structure.7.High-speed Ethernet communication interface communicates with PC.8.Standard database management test data.9.High-strength, high-toughness and beautiful protective net for safety protection.Famous brand---Siemens standard motors.Test results are automatic processing, storing and printing.Built in radial piston oil pump,stable output and low noiseCompany informationCangzhou Lovely Technical Co., Ltd is specialized in Nondestructive Test Instrument and Material testing machine over 10 years,Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which win favorable comments from customers worldwide.Cangzhou Lovely Technology Co.,Ltd. insisted on "Integrity-based, guests supremacy". Welcome customers from all over the world to visit us for business negotiation!The Foreign Trade Department of Cangzhou Lovely Group Co.,Ltd. was established.According to customers' requirements, there has the machine---CZY5 Rebar Weighing and Length Measuring InstrumentIndependent research and development and production of GW50 Automatic Rebar Bending Testing Machine.L800 Integrated Floor Thickness Gauge RBL+ Rebar Detector goes public.New product-- U900 Series Non-Metallic Ultrasonic Detector.HYE-2000 Series Microcomputer Servo Compression Testing Machine: Pad adjustment, Manual screw adjustment, Electric screw adjustment.WAW-B Micro Electromechanical Liquid Servo Universal Testing Machine.EV2 Static Deformation ModulusTester; EVD Dynamic Deformation Modulus Tester. ---Patented ProductThe factory was established, begin to produce more than 20 types instrument.Our ServicesPre-sale service* OEM customized service * Equipment installation and calibration * Free technical training for visiting factoriesAfter-sales service* 24-hour Online consulting support. * Training how to instal use the machine. * the professional after-sale service team will provide perfect technical supportPacking & DeliveryWe promise the delivery in time. And we support customize products for customers. Such as the voltage and package etc. All wooden box are suitable for exporting.FAQQ1:Are you a factory or trading company? A:We are a factory specializing in manufacturing all kinds of tester. Q2:Where is the loading port? A:Qingdao port or Tianjin port. Q3:What’s the MOQ of the product? A:Different item has different MOQ. Normally one stand is preferred. Q4:What certificates do you have? A:We have ISO 9001. Q5:Do you have an OEM service? A:Yes.We can provide OEM and ODM services as your requirements. Q6:How long is the production cycle after ordering? A:General it is about 7-15 days. Q7:What is the payment method? A:T/T payment is preferred and other payment terms is accepted.Western Union, L/C,D/P... Q8: Could you support to customize?A: Yes, we could customize the package and voltage as request.
