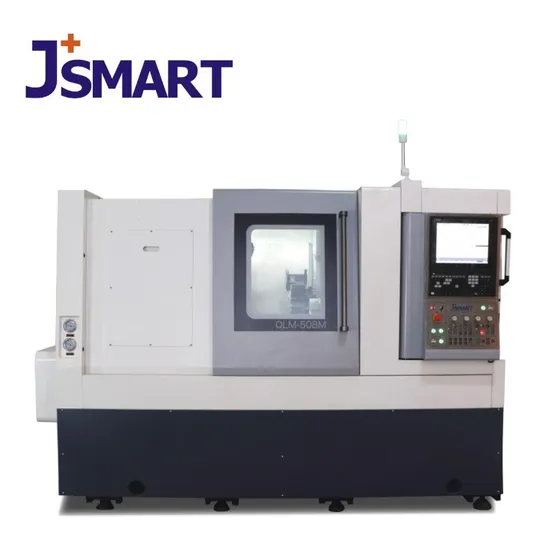

QLM-508M CNC Lathe High Precision Turning and Milling with Spindle + Y-Axis

Product Description

Parameters

QLM-508M
	Max. swing diameter over bed	mm	∅500	Control system			MITSUBISHI M80B
	Max. swing diameter over camiage	mm	∅450		Interface Spec.	-	BMT55
	Max. turning diameter	mm	∅420		Center height	mm	100
	Interference diameter of adjacent tool machining	mm	∅200	Tool	Cutter diameter	mm	∅330
	Max. machining length	mm	500	turret	Numbers of tools	pcs	12
Machining	Max. stroke of Z axis	mm	580		Shank diameter of square tool holder	mm	25
capacity	Max. stroke of X axis	mm	270		Shank diameter of boring tool holder	mm	40
	Max. stroke of Y axis	mm	+/-50		Numbers of driven tools	pcs	12
	Motor power of Z1 axis	Kw	3		Driven tool lock	-	ER25
	Motor power of X axis	Kw	2.2		Driven power of driven tool motor	kw	3.7
	Motor power of Y axis	Kw	3		Max. Torque of power tool motor	Nm	23.6
	Rapid traverse of X / Z1 / Z2 axis	m/min	25		Max. speed of driven tool motor	rpm	6000
	Rapid traverse of Y axis	m/min	15	Tailstock	Distance between centers	mm	580
Spindle	Spindle nose	-	A2-6		Drive Mode	-	Programmable hydraulic pressure
	Spindle diameter	mm	∅200		Center interface	mk	4#
	Bar specification (Standard/Optional)	mm	∅52/∅65	Appearance	Machine tool appearance	mm	2850*2110*2090
	Supporting chuck	inch	8"	& Weight	Machine tool weight	Kg	5400
	Motor power (continuous / 30min)	Kw	7.5/11
	Max. speed	rpm	4200
	spindle motor torque (rate/max)	Nm	47.7/70
	spindle motor current (continous/30min)	A	46/64
	C-axis resolution	1/n	1024/32768

QLM Series Characteristics
QLM-506 / QLM-506M / QLM-506C
QLM-508 / QLM-508M / QLM-508C
QLM-510 / QLM-510M / QLM-510C
* The machine integrates multiple functions including turning, milling, boring, and tapping, and combines C axis, Y axis and spare axis, which effectively reduces the produce changeover time, avoid artificial error, and simplify the fixtures.
* Adopt standard automatic receiver, optional automatic feeder, and chip cleaner to improve machining efficiency.
* QLM series machine adopts orthogonal Y-axis design, which has higher precision than the difference-compensated Y-axis design. The Y-axis stroke reaches 100mm. It has strong machining capability and low interference.
* Because of the Y-axis function, the machining mode of QLM series products is in the same way as a machining center equipped with a fourth-axis rotary table. (X,Y, Z axes are the same as the X, Y, Z axes of the machining center, and C axis is the same as the four axis rotary table);
* The integration of turning machine and machining center into a machine tool will greatly save manpower, reduce machining time, floor area and the purchase cost of machine tools and fixtures, as well as reducing various uncertainties caused by multiple times of clamping and handling of workpieces.
Base
Integrally formed rigid structure
Add specific trace elements to improve stability
30-degree inclined bed
Easy for chips removal, close-distance operation, and handling
BMT Driven Tool Turret Series
Achieve a quick tool change for a cycle (1# to 12# tools) within 8 seconds.
Have more stable tool locking mode, a repeatability of +/-0.002mm, and positioning accuracy of +/- 0.005mm.
Have a driven tool holder speed of up to 6,000 rpm, providing a better torque and machining efficiency.
Have a perfect U-shaped design to make center of gravity more concentrated and realize higher stability and higher precision.
Have a dual-motor design to realize fast two-way tool selection and forward and backward machining.
Adopt three-piece clutch locking device to provide extremely strong hydraulic locking force.

CNC system
The Mitsubishi system is the best choice to provide you with stable multi-axis combined machining, and it can optimize your product process while ensuring better product consistency, improving your machining effciency.
Meanwhile, its after-sales service is as timely and efficient as expected by Jhenjet Intelligent.
Hydraulic System
Korea or Japanese hydraulic system is adopted to improve equipment stability.

Spindle
The spindle is supported by front three and rear two roller bearings to improve the rigidity of the spindle and reduce the runout of the spindle.
The spindle has a strong hydraulic clamping force to facilitate the replacement of collets and chucks.
Screw rod and guide rail
The screw pitch in X and Z directions is perfectly matched to create a more perfect appearance effect and an excellent rapid feeding.
JLM-508M Internal Workpiece
