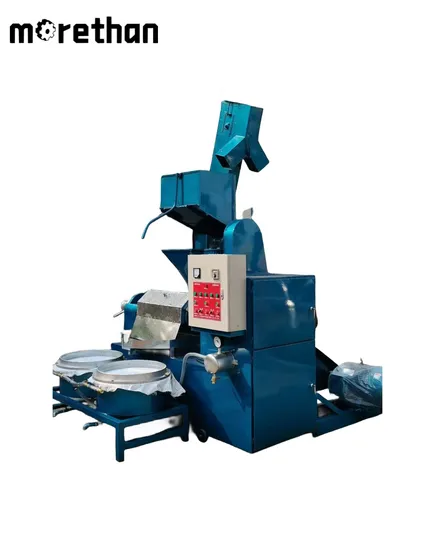

Stainless Steel Small Screw Press Automatic Commercial Oil Mill Peanut Rapeseed Oil Squeeze Filter All-in-One Oil Presser Oil Expeller

Product Description

Stainless Steel Small Screw Press Automatic Commercial Oil Mill Peanut Rapeseed Oil Squeeze Filter All-in-one Oil Presser Oil Expeller
Basic Info.

Model NO.	60A/70A/80A/100A/120A/130A/165A	Press Series	Third
Voltage	220/380V/410V	Production Time	15-20 Working Days
Main Market	Asia, Africa and South America	Transport Package	Wooden Cases
Origin	China	Production Capacity	40-850KG/H

Product Description
Stainless Steel Small Screw Press Automatic Commercial Oil Mill Peanut Rapeseed Oil Squeeze Filter All-in-one Oil Presser Oil Expeller

Screw oil press is a kind of hydraulic automatic oil press, simple and convenient operation, high oil production rate, almost all oil crops can be pressed by small oil press. Including peanuts, soybeans, sunflower, canola, walnuts, cottonseed, and so on.
1. When the oil press is running, the treated oil enters the press chamber from the hopper. The press screw is turned so that the material embryo is continuously pushed inward to press. Because the embryo is carried out in the press chamber of the oil press in a state of motion, under the condition of high pressure of the press chamber, there is a great friction resistance between the embryo and the press screw, the embryo and the press chamber, so that friction between the embryo and the micro-material can be generated, resulting in relative movement.
2. Because the diameter of the root garden of the screw is gradually thickened, the pitch is gradually reduced, so when the screw is rotated, the thread can push forward and turn outwards, and the material layer near the surface of the screw thread also rotates with the press shaft. In this way, each embryo particle in the press chamber is not the same speed, the same direction, but there is a relative movement between the particles.
3. The heat generated by friction meets the heat necessary for the operation of the oil pressing process, which helps to promote the thermal denaturation of the protein in the embryo, destroy the colloid, increase the plasticity, and also reduce the viscosity of some easy to precipitate oil, thus improving the oil yield of the oil press, so that the oil in the material is pressed out, and flows from the garden row gap and strip row gap.
Hot selling Manul model in Cheap price

Model	Motor	Capacity	Voltage	Package Size	Weight
6YL-68	5.5kw	40-60kg/h	380V 50Hz, three-phase	90*45*85cm	220kg
6YL-80	5.5kw	80-130kg/h		132*54*102cm	340kg
6YL-95	11kw	130-200kg/h		220*55*76cm	630kg
6YL-120-1	15kw	250-350kg/h		240*56*76cm	680kg
6YL-130	18.5kw	380-500kg/h		198*68*146cm	720kg
6YL-165	30kw	700-850kg/h		220*65*90cm/105*83*75cm	1300kg

Automatic Model with filter and Conveyor

Name Models		6YL-60A	6YL-70A	6YL-80A	6YL-100A	6YL-125A	6YL-130A	6YL-160A
Diameter of spiral shell		55mm	65mm	80mm	100mm	125mm	130mm	160mm
Diameter of hollow space		57mm	65mm	82mm	102mm	127mm	132mm	163mm
Speed of spiral shell		52r/min	48r/min	47r/min	38r/min	36r/min	43r/min	35r/min
Matchedpower	Main engine	2.2kw	3kw	5.5kw	7.5kw	15kw	22kw	18.5kw
	Heater power	0.9kw	1.8kw	2kw	2.2kw	2.8kw	3kw	3.5kw
	Vacuum pump	0.55kw	0.75kw	1.1kw	1.1kw	1.5kw	1.1kw	1.5kw
Productivity		30-60kg/h	60-70kg/h	80-150kg/h	150-250kg/h	250-350kg/h	380-500kg/h	650-850kg/h
Net weight		250kg	390kg	570kg	1100kg	1300kg	1260kg	1420kg
Dimension(mm)		1200*780*1100	1400*860*1260	1700*1200*1500	1960*1630*1900	2300*1630*1920	2500*1200*1900	2550*1300*1950
Voltage		220v	220v	380v	380v	380v	380v	380v

Detailed Photos
Wearing Parts

Factory show
Henan Morethan Machinery Co., Ltd. is a professional manufacturer of grain and oil machinery and equipment. The company's leading product, 6YL series screw oil press, has more than 20 varieties, with high market share, customers all over the world, and more importantly, 70% of the customers are introduced by old customers. More than 300 foreign small and medium-sized oil plants have been provided with oil presses and design schemes.

Certifications
Packaging & Shipping


Product advantages:
1. The oil produced by physical pressing is clear, automatic, free of chemical additives, natural and nutritious, and mellow in taste. 2. High quality carbon steel materials Adopting tempering technology, the exhaust is more wear-resistant and the service life of the equipment is longer. 3. Support cold pressing/hot pressing High oil yield, less slag, clear crude oil and low residual oil rate. 4. The automatic feeder can be customized for secondary squeezing, which saves labor and improves output.
Our Advantage: 1. Source factory, low price
2. Fast delivery with stock
3. Professional R & D team
4. High market share in Europe and the United States, many re-purchase customers

FAQ
Q: Are you a factory or trading company ?
A: We are factory with 20 year's manufacturing experiences, and we also have our own trading company . our main products including :screw oil press, seeds roaster, oil filter, oil refinery machine and spare parts etc.
Q: How can we verify that you are a factory ?
A: You can add our contact information and we will show our factory to you online.
Q: If i don't know how to operate this machine ? How can i do ?
A: Our machine has been tested ok and make 2-4hours wear-in and then can work.
Q: What's wear-in for new machine?
A: Using 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1. 1st hour, adjust oil cake thickness as 3mm.
2. 2nd hour, adjust oil cake thickness as 2.5mm.
3. 3rd hour, adjust oil cake thickness as2 mm.
Q:What are cold press and hot press?
A: Cold press is pressing dry and raw seeds. usually need to press 2 tims to get maximum oil.
Hot press is pressing roasted seeds. usually only 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (we produce seeds roaster heated by economical fuel.)
Q:What serivice do you provide?
A: (1) 1year free warranty, whole lifetime maintenance.
(2) Supplying wearing parts all year around.
(3) Supplying technical solutions at any time.
(4) Helping design and plan the oil plants construction.
(5) Providing installation video.
(6) Developing agents with good policies around world.
Q: How can i become a distributor of Henan Morethan?
A: Contact us immediately for further details by sending us an inquiry.
We will appreciated if these following 2 tips contained in your inquiry.
Tips1.The raw material is:_______
Tips2.The capacity of the machine you need is:______
Thank you and looking forward to your inquiry,we will response immediately.
Make order right now! And why?
One of our clients called us for buying wearing parts and he told us that his machine bought from us in 2001s. Its really! So, don't worry about the quality. Its beter than your think!
