High Efficient Hydraulic Plane Manual Clicker Press

Product Description

manual clicker press

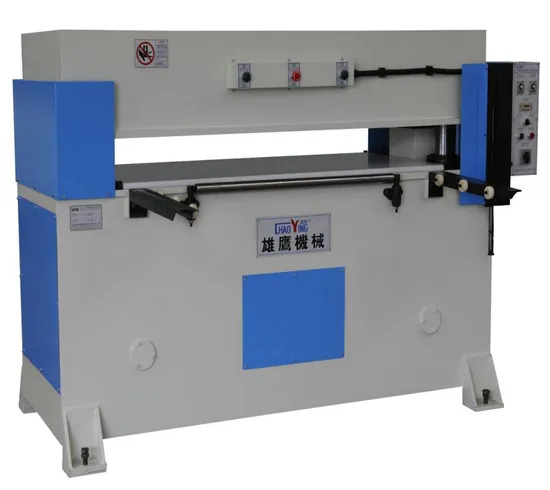

High efficient hydraulic plane manual clicker press
Use and character
The machine is suitable for cutting single layer or multiple layers of leather, rubber, plastic, plastic packing, textile products, chemical fiber and other materials by forming cutter.
1. The operation is labor-saving and simple, with low malfunction, strong cutting force and high cutting speed.
2. The mechanism of double oil cylinder and precise four-column automatic balancing connection rod can guarantee the same cutting depth of each cutting position.
3. When the cutting board is pressed downwards to contact the cutter, it carries out automatic and slow cutting to make no size error between the uppermost layer and lowermost layer of the cut materials.
4. Operation with both hands makes high safety.
Technical specification

Maximum cutting force	500kN/50T
Travel adjustment range	0-150mm
Range between the working tables	60-210mm
Size of the upper pressing board	1600× 800mm
Size of lower worktable	1600× 820mm
Motor power	4kW
Overall dimension	2380× 1400× 1400mm
Total weight	3600KG

The die cutter :
